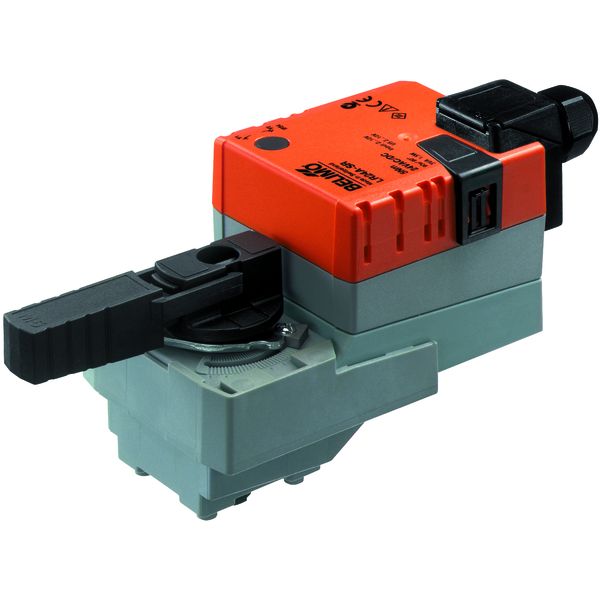

LR24A-SR-TP - Belimo Rotary actuator 5 Nm AC / DC 24 V with terminal connections | ideal for ball valves
£162.96
£135.80
On request
SKU
LR24A-SR-TP
Next Supplier Stock Update: 15/03/2025
EXPLORE MORE VERSIONS AND ACCESSORIES
Manuals & Datasheets
| DATA-SHEET |
 |
| Product type | Actuator |
| IP rating | IP54 |
| Input Signal | 0..10 Vdc |
| Manufacturer | Belimo |
| Power Supply | 24Vac/Vdc |
| Torque | 5 Nm |
| Running time | 90 to 105 sec |
| Actuator type | Rotary |
| Ideal for | ball valves |
Find all the components for your ventilation system at IACS. All Belimo Actuators on hand are eligible for Free Delivery and 1-2 Delivery.
The Belimo LR24A-SR-TP is a kind of Actuator used in HVAC applications and air ventilation systems.
To control the damper, this kind of Actuator turns it by Rotary motion.
The Torque used by the LR24A-SR-TP is 5 Nm.
This Belimo Actuator requests a power supply of 24Vac/Vdc.
Find the appropriate Belimo Actuator for your system at the greatest price at iacs.
If you have questions about size or installation, consult the Belimo custom datasheet above or send an email to iacs to get personalised guidance.
LR24A-SR-TP - Rotary actuator 5 Nm AC / DC 24 V with terminal connections
• Modulating
• Running time motor 90 s / 90°
• Operating range DC 2...10 V
• Position feedback DC 2...10 V
• IP 54, Manual override temporary, permanent
• Connection cable length = 1 m
• Position indicator mechanical
• Terminal connections
Features
- Mode of operation The actuator is controlled by means of a standard control signal DC 0 ... 10 V. It opens to theposition dictated by this signal. The measuring voltage U allows the damper position (0 ... 100%)to be electrically indicated and serves as a follow-up control signal for other actuators.
- Simple direct mounting Straightforward direct mounting on the ball valve with only one screw. The assembly tool isintegrated in the plug-on position indicator. The mounting position in relation to the ball valve can be selected in 90° steps.
- Adjustable angle of rotation Adjustable angle of rotation with mechanical end stops.A minimum permissible angle of rotation of 30° must be allowed for.
- High functional reliability The actuator is overload-proof, requires no limit switches and automatically stops when the endstop is reached.
- Position feedback U5 Operation of the ball valve is optimised by a limiting ring. This ring reduces the angle of rotation from 95° to 90° , i.e. U5 will deviate from Y by approximately 0.3 V when the valve is closed.
• Electrical data Nominal voltage AC 24 V, 50/60 Hz DC 24 V
• Power supply range AC/DC 19.2 ... 28.8 V
• Power consumption In operation 1 W at nominal torque
• At rest 0.4 W
• For wire sizing 2 VA
• Connection Cable 1 m, 4 x 0.75 mm2
• Parallel connection Possible, note performance data
• Functional data Torque (nominal torque) Min. 5 Nm at nominal voltage
• Control Control Signal Y DC 0 ... 10 V, typical input impedance 100kΩ
• Operating range DC 2 ... 10 V
• Position feedback DC 2 ... 10 V, max. 1 mA (Measuring voltage U)
• Position accuracy ±5%
• Manual override Gearing latch disengaged with pushbutton(temporary-permanent)
• Running time 90 s / 90°
• Noise level Max. 35 dB (A) (without the valve)
• Position indication Mechanical, add-on
• Safety Protection class III Extra low voltage
• Degree of protection IP54 in any mounting position
• EMC CE according to 89/336/EWG
• Mode of operation Type 1 (to EN 60730-1)
• Rated impulse voltage 0.8 kV (to EN 60730-1)
• Control pollution degree 3 (to EN 60730-1)
• Ambient temperature range 0 ... +50°C
• Media temperature +5 ... +110°C in control ball valve(–10°C with stem heating upon request)
• Non-operating temperature –40 ... +80°C
• Ambient humidity range 95% r.H., non-condensating (to EN 60730-1)
• Maintenance Maintenance-free
• Dimensions / Weight Dimensions See «Dimensions» on page 2
• Weight Approx. 550 g
