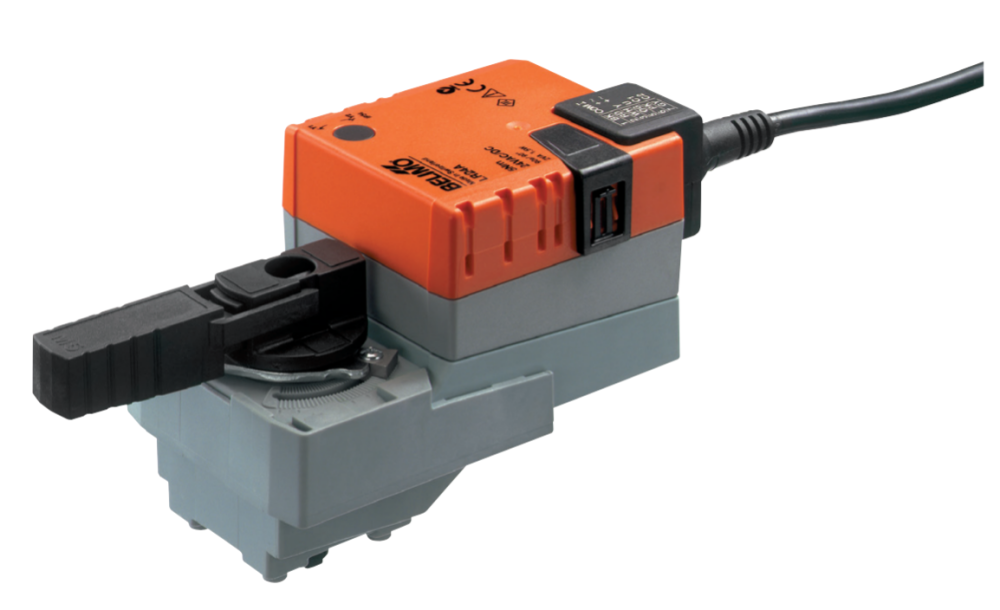

LR24A-SR - Belimo Rotary actuator 5 Nm AC / DC 24 V | Belimo Actuators | ideal for ball valves

£162.96 £135.80 Price match guarantee
Only 2 left
In stock
SKU
LR24A-SR
EXPLORE MORE VERSIONS AND ACCESSORIES
Manuals & Datasheets
 DATA-SHEET
DATASHEET

Product typeActuator
IP ratingIP54
Input Signal0..10 Vdc
ManufacturerBelimo
Power Supply24Vac/Vdc
Torque5 Nm
Running time90 to 105 sec
End Switches1 End Switch
Actuator typeRotary
Ideal for ball valves

Find all the components for your ventilation system at IACS. All Belimo Actuators on hand are eligible for Free Delivery and 1-2 Delivery.

The Belimo LR24A-SR is a kind of Actuator used in HVAC applications and air ventilation systems.

To control the damper, this kind of Actuator turns it by Rotary motion.

The Torque used by the LR24A-SR is 5 Nm.

This Belimo Actuator requests a power supply of 24Vac/Vdc.

The ideal Belimo Actuators for your system are most affordable at iacs.

If you have questions concerning size or installation, refer to the Belimo custom datasheet above or email iacs for individualised support.

LR24A-SR - Rotary actuator 5 Nm AC / DC 24 V

•    Modulating
•    Running time motor 90 s / 90°
•    Operating range DC 2...10 V
•    Position feedback DC 2...10 V
•    IP 54, Manual override temporary, permanent
•    Connection cable length = 1 m
•    Position indicator mechanical

Features


  • Mode of operation The actuator is controlled by means of a standard control signal DC 0 ... 10 V. It opens to theposition dictated by this signal. The measuring voltage U allows the damper position (0 ... 100%)to be electrically indicated and serves as a follow-up control signal for other actuators.

  • Simple direct mounting Straightforward direct mounting on the ball valve with only one screw. The assembly tool isintegrated in the plug-on position indicator. The mounting position in relation to the ball valve can be selected in 90° steps.

  • Adjustable angle of rotation Adjustable angle of rotation with mechanical end stops.A minimum permissible angle of rotation of 30° must be allowed for.

  • High functional reliability The actuator is overload-proof, requires no limit switches and automatically stops when the endstop is reached.

  • Position feedback U5 Operation of the ball valve is optimised by a limiting ring. This ring reduces the angle of rotation from 95° to 90° , i.e. U5 will deviate from Y by approximately 0.3 V when the valve is closed.


•     Electrical data Nominal voltage AC 24 V, 50/60 Hz DC 24 V
•     Power supply range AC/DC 19.2 ... 28.8 V
•     Power consumption In operation 1 W at nominal torque
•     At rest 0.4 W
•     For wire sizing 2 VA
•     Connection Cable 1 m, 4 x 0.75 mm2
•     Parallel connection Possible, note performance data
•     Functional data Torque (nominal torque) Min. 5 Nm at nominal voltage
•     Control Control Signal Y DC 0 ... 10 V, typical input impedance 100kΩ
•     Operating range DC 2 ... 10 V
•     Position feedback DC 2 ... 10 V, max. 1 mA (Measuring voltage U)
•     Position accuracy ±5%
•     Manual override Gearing latch disengaged with pushbutton(temporary-permanent)
•     Running time 90 s / 90°
•     Noise level Max. 35 dB (A) (without the valve)
•     Position indication Mechanical, add-on
•     Safety Protection class III Extra low voltage
•     Degree of protection IP54 in any mounting position
•     EMC CE according to 89/336/EWG
•     Mode of operation Type 1 (to EN 60730-1)
•     Rated impulse voltage 0.8 kV (to EN 60730-1)
•     Control pollution degree 3 (to EN 60730-1)
•     Ambient temperature range 0 ... +50°C
•     Media temperature +5 ... +110°C in control ball valve(–10°C with stem heating upon request)
•     Non-operating temperature –40 ... +80°C
•     Ambient humidity range 95% r.H., non-condensating (to EN 60730-1)
•     Maintenance Maintenance-free
•     Dimensions / Weight Dimensions See «Dimensions» on page 2
•     Weight Approx. 550 g
