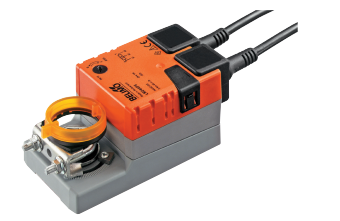

LM24AP5 - Belimo Damper Rotary actuator 5 Nm, 150 s, integrated feedback potentiometer, 95° AC / DC 24 V

Find all parts for your ventilation system at iacs, the Free Delivery and 1-2 Delivery is available for all the Belimo Actuators in stock

The Belimo LM24AP5 is a type of Actuator used to control dampers in HVAC systems and applications.

This kind of Actuator rotates the damper in order to control it.

The force applied by the Torque of the LM24AP5 is 5 Nm.

This Rotary Actuator needs to be supported by a power supply of 24Vac/Vdc.

Find the appropriate Belimo Actuator for your system at the greatest price at iacs.

If you have questions about size or installation, consult the Belimo custom datasheet above or send an email to iacs to get personalised guidance.

Features

• Simple direct mounting Simple direct mounting on the damper spindle with a universal spindle clamp, supplied with an anti-rotation strap to prevent the actuator from rotating.

• Manual override Manual override with pushbutton possible (the gear is disengaged for as long as the button is pressed or remains locked ).

• Adjustable angle of rotation Adjustable angle of rotation with mechanical end stops.


• High functional reliability The actuator is overload-proof, requires no limit switches and automatically stops when the end stop is reached.

•     Electrical data Nominal voltage AC 24 V, 50/60 Hz DC 24 V
•     Nominal voltage range AC/DC 19.2 ... 28.8 V
•     Power consumption In operation 1 W @ nominal torque
•     At rest 0.2 W
•     For wire sizing 1.5 VA
•     Connection Cable 1 m, 3 x 0.75 mm2
•     Functional data Torque (nominal torque) Min. 5 Nm @ nominal voltage
•     Manual override Gear disengagement with push-button, can be locked
•     Angle of rotation Max. 95°
•     Running time 150 s
•     Sound power level Max. 35 dB (A)
•     Position indication Mechanical, pluggable
•     Safety Protection class III Safety extra-low voltage
•     Degree of protection IP54 in any mounting position
•     EMC CE according to 2004/108/EC
•     Mode of operation Type 1
•     Ambient temperature range –30 ... +50°C
•     Non-operating temperature –40 ... +80°C
•     Ambient humidity range 95% r.H., non-condensating (EN 60730-1)
•     Maintenance Maintenance-free
•     Weight Approx. 0.58kg
