LH230ASR100 - Belimo Linear actuator with rack 150 N, 150 s / 100 mm / constant, AC 230 V

At IACS we provide Free Delivery and Next 1-2 day Delivery for all the Belimo Actuators in stock.

The Belimo LH230ASR100 is an Actuator used in HVAC applications and air ventilation systems.

The Torque force applied by the LH230ASR100 is 150 N.

The power supply requested for this Rotary Actuator is 230Vac.

If you have questions concerning size or installation, refer to the Belimo custom datasheet above or email iacs for individualised support.

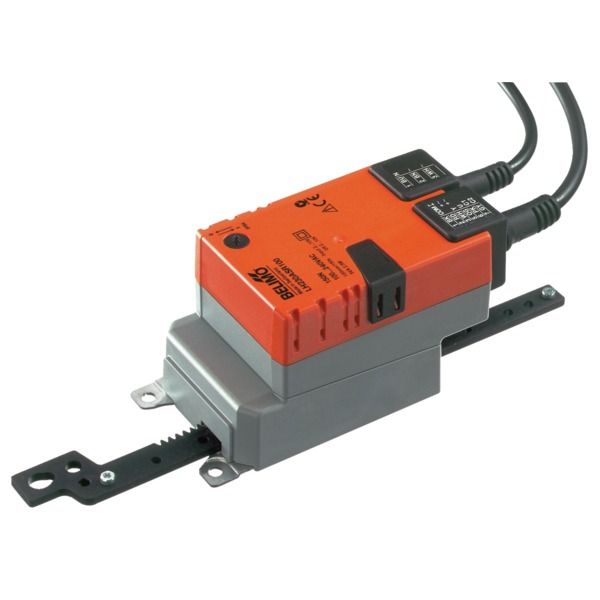

LH230ASR100 - Linear actuator with rack 150 N, 150 s / 100 mm / constant,  AC 230 V

•   Modulating Stroke range 0...100 mm
•   IP 54, Manual override by means of push-button
•   Control DC 0...10 V
•   Operating range DC 2...10 V
•   Position feedback DC 2...10 V
•   Connection PVC cable 1m

Features

• Manual override Manual operation is possible with the pushbutton (the gearing latch remains disengaged as long as the pushbutton is pressed or detented).

• Stroke adjustment The stroke of the gear rack can be adjusted on both sides in increments of 20 mm by means of mechanical end stops.

• High functional reliability The actuator is overload-proof, requires no limit switches and automatically stops when the end stop is reached.

•    Electrical data Nominal voltage AC 100 ... 240 V, 50/60 Hz
•    Power supply range AC 85 ... 265 V
•    Power consumption In operation 2.5 W @ nominal force At rest 1 W For wire sizing 5 VA
•    Connection Power supply Cable 1 m, 2 x 0.75 mm²  Signals Cable 1 m, 4 x 0.75 mm²
•    Functional data Actuating force 150 N @ nominal voltage
•   Control Control signal Y DC 0 ... 10 V, typical input impedance 100 kΩ
•   Operating range See «Overview of types»
•   Position feedback (Measuring voltage U) DC 2 ... 10 V, max. 1 mA
•   Position accuracy ±5%
•   Stroke See «Overview of types»
•   Direction of stroke at Y = 0 V Reversible with switch 1 resp. 0
•   Running time LH230ASR100/200 150 s / 100 mm
•   Sound power level <35 dB (A)
•   Safety Protection class II Totally insulated
•   Degree of protection IP54 in any mounting position
•   EMC CE according to 89/336/EEC
•   Low voltage directive CE according to 73/23/EEC
•   Mode of operation Type 1 (to EN 60730-1)
•   Rated impulse voltage Supply 4 kV (to EN 60730-1)
•   Control 0.8 kV (to EN 60730-1)
•   Control pollution degree 3 (to EN 60730-1)
•   Ambient temperature range –30 ... +50°C
•   Non-operating temperature –40 ... +80°C
•   Ambient humidity range 95% r.H., non-condensating (to EN 60730-1)
•   Maintenance Maintenance-free
•   Dimensions / Weight Dimensions See «Dimensions» on page 3
•   Weight See «Overview of types»
