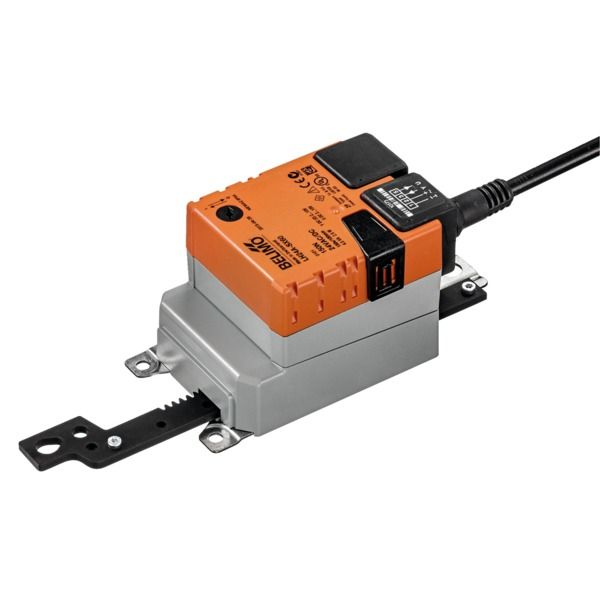

LH230A60 - Belimo Linear actuator with rack 150 N

Find all the components for your ventilation system at IACS. All Belimo Actuators on hand are eligible for Free Delivery and 1-2 Delivery.

The Belimo LH230A60 is a kind of Actuator used in HVAC applications and air ventilation systems.

The Torque used by the LH230A60 is 150 N.

This Belimo Actuator requests a power supply of 230Vac.

Find the appropriate Belimo Actuator for your system at the greatest price at iacs.

If you have questions about size or installation, consult the Belimo custom datasheet above or send an email to iacs to get personalised guidance.

LH230A300 - Linear actuator with rack 150 N,

•   90 s / 60 mm,
•   AC 230 V, Open/Close, 3-point
•   Stroke range 0...60 mm adjustable IP 54,
•   Manual override by means of push-button
•   Control with single- / 2-wire contact
•   Connection PVC cable 1m

Features

• Manual override Manual operation is possible with the pushbutton (the gearing latch remains disengaged as long as the pushbutton is pressed or detented).

• Stroke adjustment The stroke of the gear rack can be adjusted on both sides in increments of 20 mm by means of mechanical end stops.

• High functional reliability The actuator is overload-proof, requires no limit switches and automatically stops when the end stop is reached.

•    Electrical data Nominal voltage AC 100 ... 240 V, 50/60 Hz
•    Power supply range AC 85 ... 265 V
•    Power consumption In operation 1.5 W @ nominal force At rest 1 W For wire sizing 5 VA
•    Connection Cable 1 m, 3 x 0.75 mm²
•    Functional data Actuating force 150 N @ nominal voltage
•    Stroke See «Overview of types»
•    Direction of stroke Reversible with switch 1 resp. 0
•    Running time 90 s / 60 mm LH230A60 LH230A100/200/300 150 s / 100 mm
•    Sound power level <35 dB (A)
•    Safety Protection class II Totally insulated
•    Degree of protection IP54 in any mounting position
•    EMC CE according to 89/336/EEC Low voltage directive CE according to 73/23/EEC
•    Mode of operation Type 1 (to EN 60730-1)
•    Rated impulse voltage 4 kV (to EN 60730-1)
•    Control pollution degree 3 (to EN 60730-1)
•    Ambient temperature range –30 ... +50°C
•    Non-operating temperature –40 ... +80°C
•    Ambient humidity range 95% r.H., non-condensating (to EN 60730-1)
•    Maintenance Maintenance-free
•    Dimensions / Weight Dimensions See «Dimensions» on page 3
•    Weight See «Overview of types»
