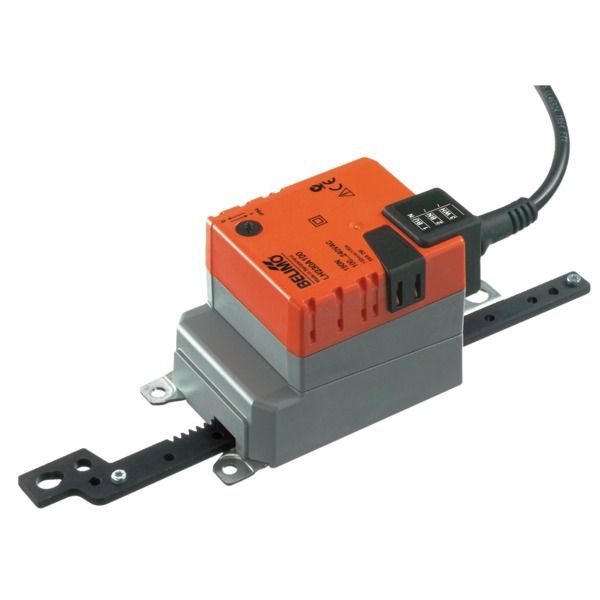

LH230A100 - Belimo Linear actuator with rack 150 N

At IACS we provide Free Delivery and Next 1-2 day Delivery for all the Belimo Actuators in stock.

The Belimo LH230A100 is an Actuator used in HVAC applications and air ventilation systems.

The Torque force applied by the LH230A100 is 150 N.

The power supply requested for this Linear Actuator is 230Vac.

Find at IACS the ideal Belimo Actuator compatible with your system at the best price.

If you are unsure about size or installation, refer to the Belimo custom datasheet above or message iacs to receive special instructions and a custom quote.

LH230A100- Linear actuator with rack 150 N,

•  150 s / 100 mm / constant,
•   AC 230 V, Open/Close, 3-point
•   Stroke range 0...100 mm IP 54,
•   Manual override w. push-button
•   Control with single- / 2-wire contact
•   Connection PVC cable 1m

Features

• Manual override Manual operation is possible with the pushbutton (the gearing latch remains disengaged as long as the pushbutton is pressed or detented).

• Stroke adjustment The stroke of the gear rack can be adjusted on both sides in increments of 20 mm by means of mechanical end stops.

• High functional reliability The actuator is overload-proof, requires no limit switches and automatically stops when the end stop is reached.

•    Electrical data Nominal voltage AC 100 ... 240 V, 50/60 Hz
•    Power supply range AC 85 ... 265 V
•    Power consumption In operation 1.5 W @ nominal force At rest 1 W For wire sizing 5 VA
•    Connection Cable 1 m, 3 x 0.75 mm²
•    Functional data Actuating force 150 N @ nominal voltage
•    Stroke See «Overview of types»
•    Direction of stroke Reversible with switch 1 resp. 0
•    Running time 90 s / 60 mm LH230A60 LH230A100/200/300 150 s / 100 mm
•    Sound power level <35 dB (A)
•    Safety Protection class II Totally insulated
•    Degree of protection IP54 in any mounting position
•    EMC CE according to 89/336/EEC Low voltage directive CE according to 73/23/EEC
•    Mode of operation Type 1 (to EN 60730-1)
•    Rated impulse voltage 4 kV (to EN 60730-1)
•    Control pollution degree 3 (to EN 60730-1)
•    Ambient temperature range –30 ... +50°C
•    Non-operating temperature –40 ... +80°C
•    Ambient humidity range 95% r.H., non-condensating (to EN 60730-1)
•    Maintenance Maintenance-free
•    Dimensions / Weight Dimensions See «Dimensions» on page 3
•    Weight See «Overview of types»
