LF230-S - Belimo Spring-return Damper Actuator 4 Nm, 75 s, 95° AC 230 V, Open/Close

Find all parts for your ventilation system at iacs, the Free Delivery and 1-2 Delivery is available for all the Belimo Actuators in stock

The Belimo LF230-S is a type of Actuator used in HVAC and ventilation systems.

The force applied by the Torque of the LF230-S is 4 Nm.

The power supply requested for this Rotary Actuator is 230Vac.

Find the appropriate Belimo Actuator for your system at the greatest price at iacs.

If you have questions about size or installation, consult the Belimo custom datasheet above or send an email to iacs to get personalised guidance.

The Belimo LF230-S is a Spring-return actuator with a torque of 4 Nm, 75 s, 95° AC 230 V, Open/Close

Application For the operation of air dampers that perform safety functions (e.g. frost and smoke protection, hygiene, etc.).



Mode of operation The LF... actuator moves the damper to its normal working position while tensioning the return spring at the same time. If the power supply is interrupted, the energy stored in the spring moves the damper back to its safe position.



Features

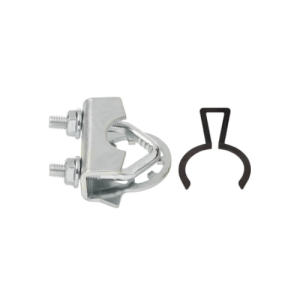

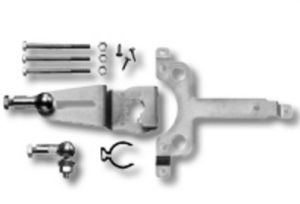

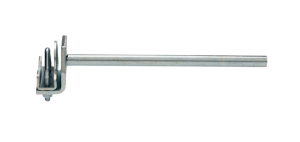

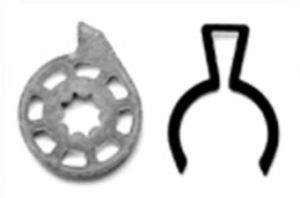

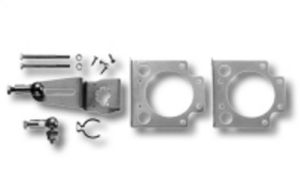

Simple direct mounting on the damper spindle by universal spindle clamp. An antirotation device is supplied to prevent unwanted rotation of the whole unit.

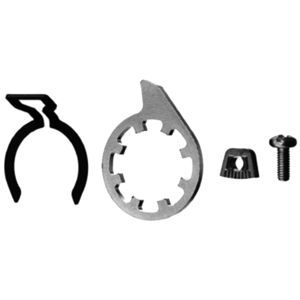

Mechanical angle of rotation limiting adjustable with built-in stop.

High functional reliability The actuator is overload proof, needs no limit switches and halts automatically at the end stop.

Flexible signalling 0...100% , with adjustable auxiliary switch (LF230-S only).



•    Spring-return actuator 4 Nm, 40...75 s (0...4 Nm), 95° AC 230 V, Open/Close, 1 x SPDT, IP 54
•    Running time spring < 20 s
•    Control Open/Close with single-wire contact
•    Connection PVC cable 1m
•    Auxiliary switch 0...100 % adjustable
•    Rating 1 mA...3(0.5)A, AC 250 V
•    Spindle driver universal spindle clamp
•    Direction of rotation reversible (right/left)
•    Angle of rotation limit. mech. adjustable

•    Technical data LF230, LF230-S
•    Nominal voltage AC 230 V 50/60 Hz
•    For wire sizing 7 VA (Imax 150 mA @ 10 ms)
•    Power consumption – motoring 5 W – holding 3 W
•    Connecting cable – motor 1 m long, 2 x 0.75 mm2 – auxiliary switch (LF230-S) 1 m long, 3 x 0.75 mm2
•    Auxiliary switch (LF230-S) 1 x SPDT 6 (1.5) A, AC 250 V – Switching point adjustable 0...100%
•    Direction of rotation selected by mounting L/R •    Torque – motor min. 4 Nm (at rated voltage) – spring return min. 4 Nm
•    Torque max. 95° (adjustable 37...100% with built-in mechanical stop)
•    Running time – motor 40...75 s (0...4 Nm) – spring return ≈20 s @ –20...50 °C / max. 60 s @ –30 °C
•    Sound power level motor max. 50 dB (A), spring ≈62 dB (A)
•    Service life min. 60 000 operations
•    Position indication mechanical
•    Protection class II (all insulated)
•    Degree of protection IP 54
•    Ambient temp. range – 30...+50 °C Non-operating temp. – 40...+80 °C Humidity test to EN 60335-1
•    EMC CE according to 89/336/EEC, 92/31/EEC, 93/68/EEC
•    Low Voltage Directive CE according to 73/23/EEC
•    Maintenance maintenance-free
•    Weight 1550 g
