Description

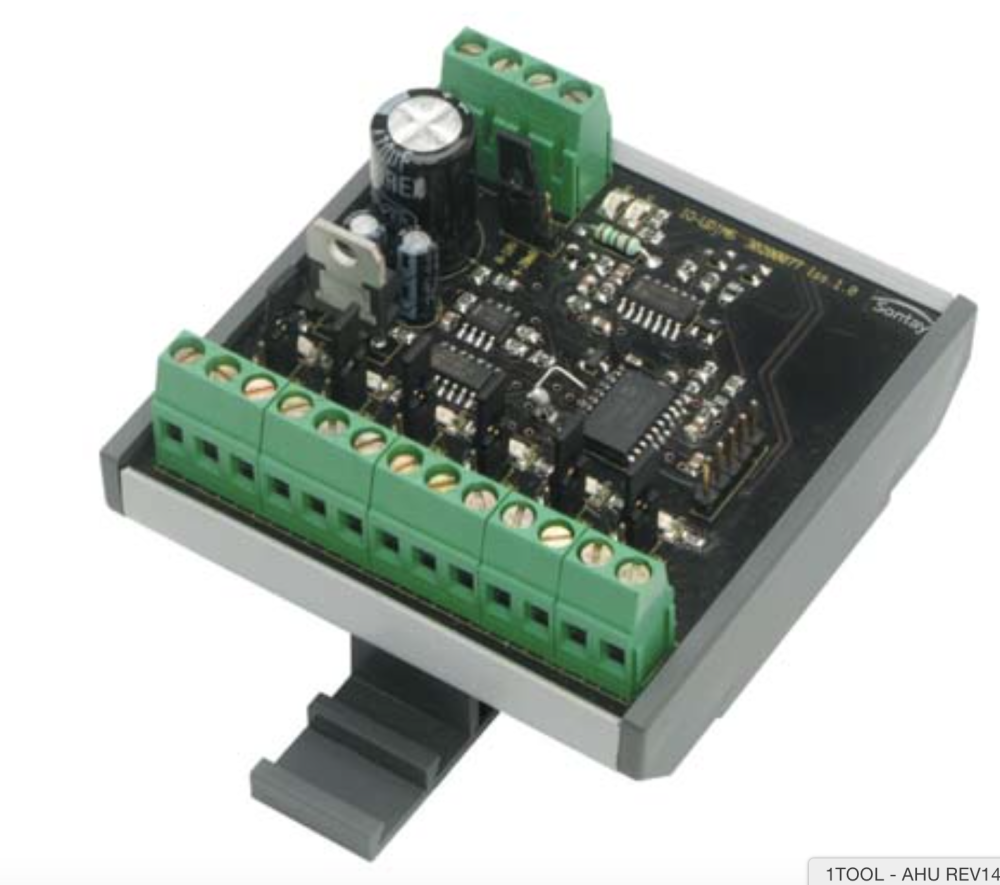

Introducing the Sontay IO-DIM6 6-Channel Digital to Analogue Converter - the perfect solution for those who need reliable and accurate conversion of digital signals into analogue outputs. With a variety of input options including VFC, 24Vac, and 24Vdc, this converter is adaptable to suit a range of applications.
The outputs are versatile, offering a 0-10Vdc output into 2kΩ impedance or 4-20mA output into 500Ω max. With a maximum current output of 55mA and voltage output of 35mA, the Sontay IO-DIM6 is capable of handling a range of applications.
LED indication lights show the status of the supply, voltage output, and current output (for 4-20mA output only) - ensuring easy monitoring of the device's status. The manual override On/Auto function for each input allows for even more control and flexibility.
The converter's electrical terminals use rising cage connectors for 0.5-2.5mm² cable, ensuring secure and safe connections. The Sontay IO-DIM6 is also designed with an ambient temperature range of -10 to +50°C (14 to 122°F) and an RH range of 0 to 80% non-condensing, making it suitable for a wide range of environments.
The Sontay IO-DIM6 is compact, with dimensions of 75 x 75 x 42mm (2.95 x 2.95 x 1.65”) and is proudly made in the UK, ensuring its high-quality and reliability.
Overall, the Sontay IO-DIM6 6-Channel Digital to Analogue Converter is a versatile and dependable device, suitable for a range of applications that require accurate and reliable digital to analogue signal conversion.
Features
- Fault finding LED indication
- Auto-calibration of the output
- Input status indication
- Input status simulation
- Expands controller input capacity
-
Input signal: 0-10Vdc
Output signal: 0-10Vdc direct or buffered
Max. output current: 20mA per channel in buffered mode
Power supply 21Vdc to 40Vdc 21Vac to 27Vac
Max. supply current
AC supply 260mA
DC supply 115mA
Fused output 24Vac @ 8A
Manual override Hand/Off/Auto
Jumper selectable
with screwdriver adjustment of
output voltage in ‘Hand’
position
Fuse 8A max.
Electrical connections Rising cage terminals for 0.5-
2.5mm²
Ambient -10 to 50°C (14 to 122°F)
Dimensions 105 x 106 x 70mm
(4.09 x 4.17 x 2.76”)
Country of origin UK
