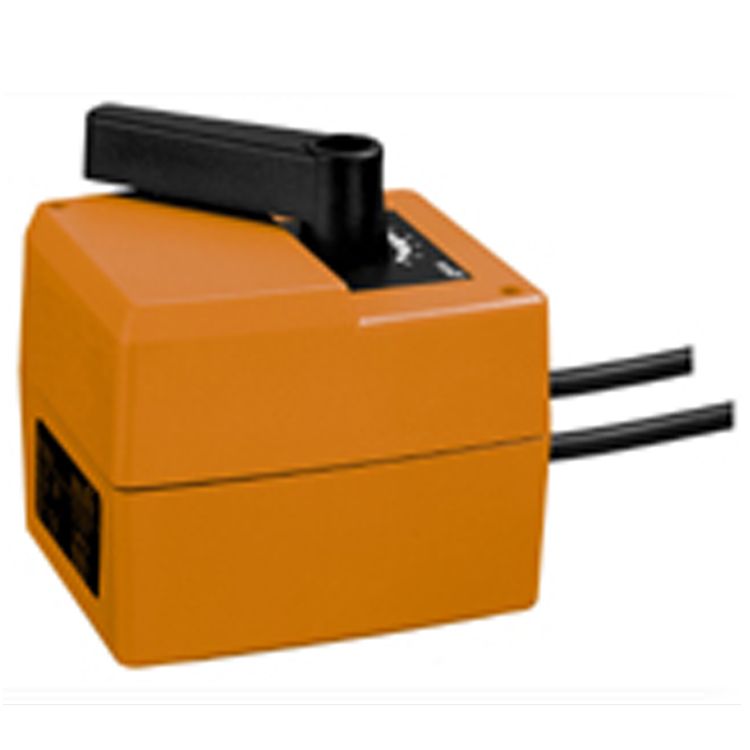

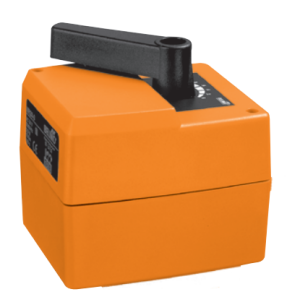

HT24-SR - Belimo Rotary Valve Actuator with Torque 10 Nm | ideal for mixing valves

Find all the components for your ventilation system at IACS. All Belimo Actuators on hand are eligible for Free Delivery and 1-2 Delivery.

The Belimo HT24-SR is a kind of Actuator used in HVAC applications and air ventilation systems.

To control the damper, this kind of Actuator turns it by Rotary motion.

The Torque used by the HT24-SR is 10 Nm.

This Belimo Actuator requests a power supply of 24Vac/Vdc.

If you have questions concerning size or installation, refer to the Belimo custom datasheet above or email iacs for individualised support.

HT24-SR
Rotary actuator mixing valve
10 Nm
AC/DC 24 V, modulating
Running time motor 140 s
Operating range DC 0...10 V, 2...10 V adjustable
Position feedback DC 2...10 V, 0...10 V,adjustable
Manual override temporary, permanent
Connection Screw terminals
for the most common mixing valves

Features

• Simple direct mounting Straightforward direct mounting with only one screw. The mounting position in relation to the mixing valve can be selected in 90° steps.


• Manual operation Manual operation possible by lever (temporary disengagement of the gearing latch by pressing,
  permanent disengagement by means of the rotary knob on the housing).


• Functional reliability The actuator switches off automatically when the end stops are reached.

•    Electrical data Nominal voltage AC 24 V, 50/60 Hz
•    Power supply range AC 19.2 ... 28.8 V
•    Power consumption In operation 1.5 W at nominal torque
•    For wire sizing 1.5 VA
•    Connection Terminals 4 mm2 (cable Ø 6 ... 8 mm, three-core)
•    Parallel connection No
•    Functional data Torque (nominal torque) Min. 10 Nm at nominal voltage
•    Position accuracy ±5%
•    Manual override Temporary and permanent disengagement of the gearing latch by means of the rotary knob on the housing
•    Running time 140 s / 90°
•    Sound power level Max. 35 dB (A)
•    Position indication Reversable scale plate 0 ... 1
•    Safety Protection class III Extra low voltage
•    Degree of protection IP40
•    EMC CE according to 89/336/EEC
•    Mode of operation Type 1.B (to EN 60730-1)
•    Rated impulse voltage 0.8 kV (to EN 60730-1)
•    Control pollution degree 3 (to EN 60730-1)
•    Ambient temperature range 0 ... +50°C
•    Media temperature +5 ... +120°C (in mixing body)
•    Non-operating temperature –30 ... +80°C
•    Ambient humidity range 95% r.H., non-condensating (to EN 60730-1)
•    Maintenance Maintenance-free
•    Dimensions / Weight Dimensions See «Dimensions» on page 2
•    Weight Approx. 500
