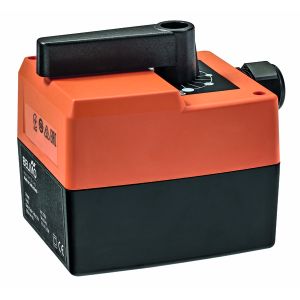

HT24-3-S - Belimo Rotary Valve Actuator with Torque 10 Nm | ideal for mixing valves

Find all the components for your ventilation system at IACS. All Belimo Actuators on hand are eligible for Free Delivery and 1-2 Delivery.

The Belimo HT24-3-S is a kind of Actuator used in HVAC applications and air ventilation systems.

To control the damper, this kind of Actuator turns it by Rotary motion.

The Torque used by the HT24-3-S is 10 Nm.

This Belimo Actuator requests a power supply of 24Vac/Vdc.

IACS has the best prices on the right Belimo Actuators for your system.

Consult the Belimo custom datasheet above or contact iacs via email for personalised assistance if you have queries about size or installation.

HT24-3-S  - Rotary actuator mixing valve 10 Nm

•   AC 24 V, 3-point, 1 x SPDT
•   Running time motor 140 s
•   Manual override temporary, permanent
•   Connection cable length = 1 m

Features

• Simple direct mounting Straightforward direct mounting with only one screw. The mounting position in relation to the mixing valve can be selected in 90° <) steps.


• Manual operation Manual operation possible by lever (temporary disengagement of the gearing latch by pressing, permanent disengagement by means of the rotary knob on the housing).


• Functional reliability The actuator switches off automatically when the end stops are reached.

•     Electrical data Nominal voltage AC 230 V, 50/60 Hz
•    Power supply range AC 198 ... 264 V
•    Power consumption In operation 3.5 W at nominal torque
•    For wire sizing 3.5 VA
•    Auxiliary switch 1 SPDT, 5 (1) A, AC 250 V II
•    Adjustable switching point, 0 ... 100% (Factory setting 100% )
•    Connecting cable Motor 1 m, 3 x 0,75 mm2
•    Auxiliary switch 1 m, 3 x 0,75 mm2
•    Parallel connection No
•    Functional data Torque (nominal torque) Min. 10 Nm at nominal voltage
•    Position accuracy ±5%
•    Manual override Temporary and permanent disengagement of the gearing latch by means of the rotary knob on the housing
•    Running time 140 s / 90°
•    Sound power level Max. 35 dB (A)
•    Position indication Reversable scale plate 0 ... 1
•    Safety Protection class III Extra low voltage
•    Degree of protection IP40
•    EMC CE according to 89/336/EEC
•    Mode of operation Type 1.B (to EN 60730-1)
•    Rated impulse voltage 0.8 kV (to EN 60730-1)
•    Control pollution degree 3 (to EN 60730-1)
•    Ambient temperature range 0 ... +50°C
•    Media temperature +5 ... +120°C (in mixing body)
•    Non-operating temperature –30 ... +80°C
•    Ambient humidity range 95% r.H., non-condensating (to EN 60730-1)
•    Maintenance Maintenance-free
•    Dimensions / Weight Dimensions See «Dimensions» on page 2
•    Weight Approx. 500
