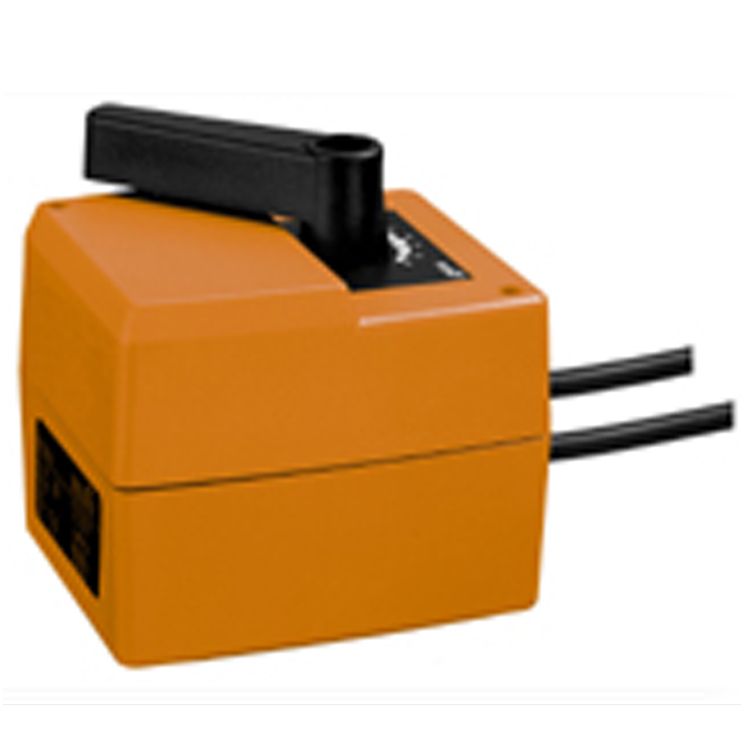

HT24-3 - Belimo Rotary Valve Actuator with Torque 10 Nm | ideal for mixing valves

At IACS we provide Free Delivery and Next 1-2 day Delivery for all the Belimo Actuators in stock.

The Belimo HT24-3 is an Actuator used in HVAC applications and air ventilation systems.

This type of Actuator applies a Rotary motion to regulate the damper.

The Torque force applied by the HT24-3 is 10 Nm.

The power supply requested for this Rotary Actuator is 24Vac/Vdc.

Find at IACS the ideal Belimo Actuator compatible with your system at the best price.

If you are unsure about size or installation, refer to the Belimo custom datasheet above or message iacs to receive special instructions and a custom quote.

HT24-3

Rotary actuator mixing valve
10 Nm
AC 24 V, 3-point
Running time motor 140 s
Manual override temporary, permanent
PVC Cable

Features

• Simple direct mounting Straightforward direct mounting with only one screw. The mounting position in relation to the mixing valve can be selected in 90° steps.


• Manual operation Manual operation possible by lever (temporary disengagement of the gearing latch by pressing,
  permanent disengagement by means of the rotary knob on the housing).


• Functional reliability The actuator switches off automatically when the end stops are reached.

•     Electrical data Nominal voltage AC 24 V, 50/60 Hz
•    Power supply range AC 19.2 ... 28.8 V
•    Power consumption In operation 1.5 W at nominal torque
•    For wire sizing 1.5 VA
•    PVC Cable
•    Parallel connection No
•    Functional data Torque (nominal torque) Min. 10 Nm at nominal voltage
•    Position accuracy ±5%
•    Manual override Temporary and permanent disengagement of the gearing latch by means of the rotary knob on the housing
•    Running time 140 s / 90°
•    Sound power level Max. 35 dB (A)
•    Position indication Reversable scale plate 0 ... 1
•    Safety Protection class III Extra low voltage
•    Degree of protection IP40
•    EMC CE according to 89/336/EEC
•    Mode of operation Type 1.B (to EN 60730-1)
•    Rated impulse voltage 0.8 kV (to EN 60730-1)
•    Control pollution degree 3 (to EN 60730-1)
•    Ambient temperature range 0 ... +50°C
•    Media temperature +5 ... +120°C (in mixing body)
•    Non-operating temperature –30 ... +80°C
•    Ambient humidity range 95% r.H., non-condensating (to EN 60730-1)
•    Maintenance Maintenance-free
•    Dimensions / Weight Dimensions See «Dimensions» on page 2
•    Weight Approx. 500
