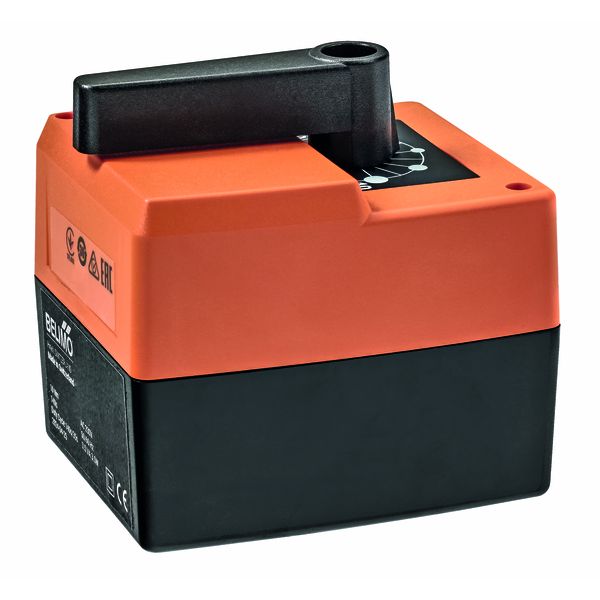

HT230-3 - Belimo Rotary Valve Actuator with Torque 10 Nm | ideal for mixing valves
£144.48
£120.40
On request
SKU
HT230-3
Next Supplier Stock Update: 16/03/2025
EXPLORE MORE VERSIONS AND ACCESSORIES
Manuals & Datasheets
| DATA-SHEET |
 |
| Product type | Actuator |
| IP rating | IP54 |
| Input Signal | On/Off |
| Manufacturer | Belimo |
| Power Supply | 230Vac, 1Ph, 50Hz |
| Torque | 10 Nm |
| Running time | 140 to 150 sec |
| Actuator type | Rotary |
| Ideal for | mixing valves |
Find all parts for your ventilation system at iacs, the Free Delivery and 1-2 Delivery is available for all the Belimo Actuators in stock
The Belimo HT230-3 is a type of Actuator used in HVAC and ventilation systems.
This kind of Actuator rotates the damper in order to control it.
The force applied by the Torque of the HT230-3 is 10 Nm.
This Rotary Actuator needs to be supported by a power supply of 230Vac.
The ideal Belimo Actuators for your system are most affordable at iacs.If you have questions concerning size or installation, refer to the Belimo custom datasheet above or email iacs for individualised support.
HT230-3
Rotary actuator mixing valve
10 Nm
AC 230 V, 3-point
Running time motor 140 s
Manual override temporary, permanent
Connection 1m cable
Features
- Simple direct mounting Straightforward direct mounting with only one screw. The mounting position in relation to the mixing valve can be selected in 90° steps.
- Manual operation Manual operation possible by lever (temporary disengagement of the gearing latch by pressing,
permanent disengagement by means of the rotary knob on the housing). - Functional reliability The actuator switches off automatically when the end stops are reached.
Electrical data:
- Nominal voltage AC 230 V, 50/60 Hz
- Power supply range AC 198 ... 264 V
- Power consumption In operation
- For wire sizing
- 3.5 W at nominal torque
- 3.5 VA
- Connection Terminals 4 mm2 (cable Ø 6 ... 8 mm, three-core)
- Parallel connection No
Functional data:
- Torque (nominal torque) Min. 10 Nm at nominal voltage
- Position accuracy ±5%
- Manual override Temporary and permanent disengagement of the
- gearing latch by means of the rotary knob on the
- housing
- Running time 140 s / 90°
- Sound power level Max. 35 dB (A)
- Position indication Reversable scale plate 0 ... 1
Safety:
- Protection class II Totally insulated
- Degree of protection IP40
- EMC
- Low voltage direction
- CE according to 89/336/EEC
- CE according to 73/23/EEC
- Mode of operation Type 1.B (to EN 60730-1)
- Rated impulse voltage 4 kV (to EN 60730-1)
- Control pollution degree 3 (to EN 60730-1)
- Ambient temperature range 0 ... +50°C (Duty cycle 140/35 s)
- Media temperature +5 ... +120°C (in mixing body)
- Non-operating temperature –30 ... +80°C
- Ambient humidity range 95% r.H., non-condensating (to EN 60730-1)
- Maintenance Maintenance-free
Dimensions / Weight:
- Dimensions See «Dimensions» on page 2
- Weight Approx. 500 g
