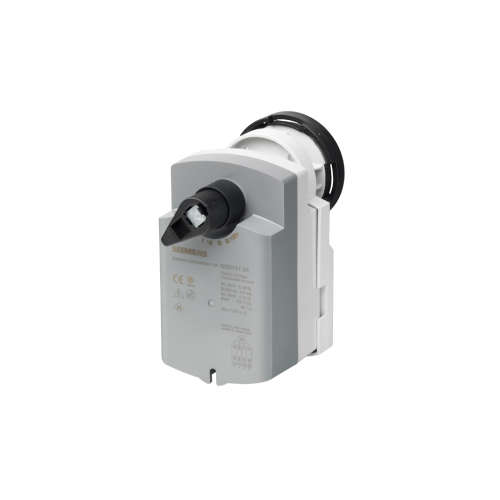

GSD161.9A - Siemens Valve Rotary Actuators without spring return for ball valves, 2 Nm, 30s | Operating Voltage AC/DC 24 V

For any Siemens Actuators that are in stock at IACS, we offer 5 to 7 Working Days Delivery.

The Siemens GSD161.9A is a type of Actuator used to open Valve in HVAC systems and applications.

The Torque used by the GSD161.9A is 2 Nm.

This Siemens Actuator requests a Power Supply of 24Vac/Vdc.

IACS has the most affordable Siemens Actuator that works with your system.

Consult the Siemens custom datasheet above or contact IACS via email for personalised assistance if you have queries about size or installation.

GSD Actuators

Electromotoric rotary actuators for modulating control.
Used in heating, ventilation and air conditioning plants.
● For 2-port and 3-port control ball valves, internally threaded connections (VAI61..
and VBI61..) or externally threaded connections (VAG61.. and VBG61..),
DN15 to DN25.
● For 6-port control ball valves VWG41.. with externally threaded connections, DN10
● Nominal torque 2 Nm
● Operating voltage AC 24 V ~ / DC 24…48 V ⎓
● Pre-wired with 0.9 m long connection cables
● Gear train disengagement button for manual adjustment
● Position indication
