GRC24A-5 Rotary actuator, 40 Nm, AC/DC 24 V, 35 s - Belimo | ideal for rotary valves and butterfly valves

At IACS we provide Free Delivery and Next 1-2 day Delivery for all the Belimo Actuators in stock.

The Belimo GRC24A-5 is an Actuator used in HVAC applications and air ventilation systems.

This type of Actuator applies a Rotary motion to regulate the damper.

The Torque force applied by the GRC24A-5 is 40 Nm.

The power supply requested for this Rotary Actuator is 24Vac/Vdc.

Find the appropriate Belimo Actuator for your system at the greatest price at iacs.

If you have questions about size or installation, consult the Belimo custom datasheet above or send an email to iacs to get personalised guidance.

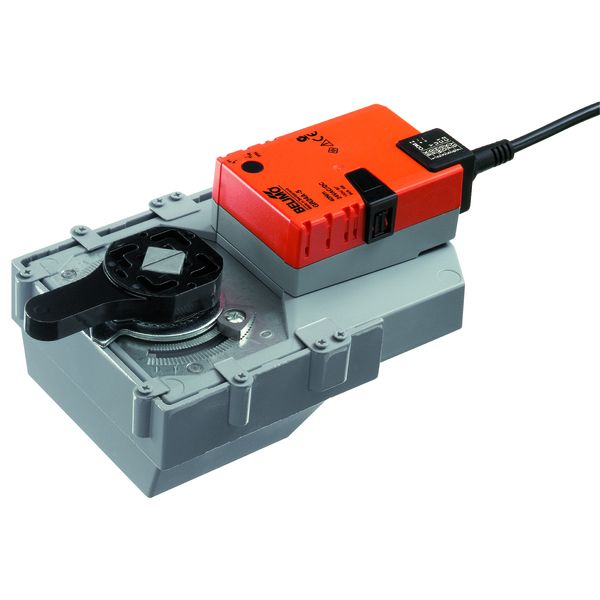

GRC24A-5 Rotary actuator, 40 Nm, AC/DC 24 V, 35 s

• Rotary actuator IP54
• Torque 40 Nm
• AC/DC 24 V
• Running time 35 s / 90°
• OPEN-CLOSE
• Manual override temporary, permanent
• Connection cable (PVC) length = 1 m

Simple direct mounting: Simple direct mounting on the rotary valve or butterfly valve with mounting flange. The mounting orientation in relation to the fitting can be selected in 90° steps.

Manual override: Manual override with push-button possible (the gear is disengaged for as long as thebutton is pressed or remains locked).

High functional reliability: The actuator is overload protected, requires no limit switches and automatically stops when the end stop is reached.

Adjustable angle of rotation: Adjustable angle of rotation with mechanical end stops.

Combination valve/actuator: For valves with the following mechanical specifications in accordance with ISO 5211, F05: - Square stem head SW = 14 mm for form fit coupling of the rotary actuator and Hole circle d = 50 mm

Electrical data:

• Nominal voltage AC/DC 24 V
• Nominal voltage frequency 50/60 Hz
• Nominal voltage range AC 19.2...28.8 V / DC 19.2...28.8 V
• Power consumption in operation 8 W
• Power consumption in rest position 2.5 W
• Power consumption for wire sizing 11 VA
• Connection supply / control Cable 1 m, 3 x 0.75 mm²
• Parallel operation Yes (note the performance data)

Functional data:

• Torque motor Min. 40 Nm
• Manual override Gear disengagement with push-button, can be locked
• Running time motor 35 s / 90°
• Sound power level motor 45 dB(A)
• Position indication Mechanically (integrated)

Safety:

• Protection class IEC/EN III Safety extra-low voltage
• Protection class UL UL Class 2 Supply
• Degree of protection IEC/EN IP54
• Degree of protection NEMA/UL NEMA 2, UL Enclosure Type 2
• EMC CE according to 2004/108/EC
• Certification IEC/EN IEC/EN 60730-1 and IEC/EN 60730-2-14
• Certification UL cULus according to UL 60730-1A, UL 60730-2-14 and CAN/CSA E60730-1:02
• Mode of operation Type 1
• Rated impulse voltage supply / control 0.8 kV
• Control pollution degree 3
• Ambient temperature -30...50°C
• Non-operating temperature -40...80°C
• Ambient humidity 95% r.h., non-condensing
• Maintenance Maintenance-free

Mechanical data:

Connection flange F05

Weight: 2.5 kg
