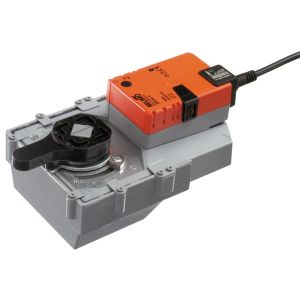

GR24A-SR-5 - Belimo Rotary actuator 40 Nm AC / DC 24 V, modulating | ideal for rotary valves and butterfly valves

GR24A-SR-5 - Rotary actuator 40 Nm AC / DC 24 V, modulating

•    Running time motor 150 s / 90°
•    Operating range DC 2...10 V
•    Position feedback DC 2...10 V
•    IP 54, Manual override temporary, permanent
•    Connection PVC cable 1m
•    Position indicator mechanical

Features

• Mode of operation The actuator is controlled with a standard modulating signal of DC 0 ... 10 V and travels to the position defined by the control signal. Measuring voltage U serves for the electrical display of the actuator position 0 ... 100% and as slave control signal for other actuators.


• Simple direct mounting Simple direct mounting on a butterfly valve with ISO 5211-F05 mounting flange. The mounting position in relation to the butterfly valve can be selected in 90° steps.


• Manual override Manual override with push-button possible (the gear is disengaged for as long as the button is pressed or remains locked).


• Adjustable angle of rotation Adjustable angle of rotation with mechanical end stops.


• High functional reliability The actuator is overload-proof, requires no limit switches and automatically stops when the end stop is reached.



•    Electrical data Nominal voltage AC 24 V, 50/60 Hz / DC 24 V
•    Nominal voltage range AC 19.2 ... 28.8 V / DC 21.6 ... 28.8 V
•    Power consumption In operation 4.5 W @ nominal torque
•    At rest 1.5 W
•    For wire sizing 6.5 VA
•    Connection Cable 1 m, 4 x 0.75 mm2
•    Parallel operation Possible, note performance data
•    Functional data Torque Min. 40 Nm @ nominal Voltage
•    Control Control signal Y DC 0 ... 10 V, typical input impedance 100kΩ
•    Operating range DC 2 ... 10 V
•    Position feedback DC 2 ... 10 V, max. 1 mA (Measuring voltage U)
•    Position accuracy ±5%
•    Manual override Gearing latch disengaged with pushbutton, can be locked
•    Degree of protection IP54 in any mounting position
•    Angle of rotation Max. 95° at 10 V 90° at 9.7 ... 9.75 V
•    Running time 150 s / 90°
•    Sound power level Max. 45 dB (A) (without butterfly valve)
•    Position indication Mechanical, pluggable
•    Protection class III Safety extra-low voltage / UL Class 2 Supply
•    Degree of protection IP54 in any mounting position NEMA 2, UL Enclosure Type 2
•    EMC CE in accordance with 2004/108/EU
•    Certification cULus according to UL 60730-1A and UL 60730-2-14 and CAN/CSA E60730-1:02 Certified to IEC/EN 60730-1 and IEC/EN 60730-2-14
•    Mode of operation Type 1
•    Rated impulse voltage 0.8 kV
•    Control pollution degree 3
•    Ambient temperature 0 ... +50°C
•    Medium temperature –20 ... +120°C in the butterfly valve
•    Non-operating temperature –40 ... +80°C
•    Ambient humidity 95% r.h., non-condensating
•    Maintenance Maintenance-free
•    Dimensions See «Dimensions» on page 2
•    Weight Approx. 2.5 kg
