The Belimo GR24A-Ris a kind of Actuator used to operate valves in HVAC applications and systems.

The force applied by the Torque of the GR24A-R is 40 Nm.

This Valve Actuator needs to be supported by a power supply of 24Vac/Vdc.

This Belimo component can be used with Butterfly Valves.

IACS has the best prices on the right Belimo Actuators for your system.

Consult the Belimo custom datasheet above or contact iacs via email for personalised assistance if you have queries about size or installation.

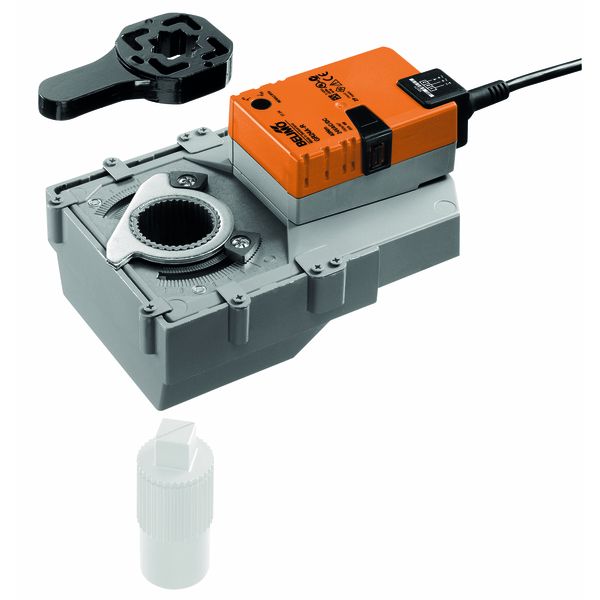

GR24A-R Rotary Actuator Butterfly Valve, 40 Nm, AC/DC 24 V,150 s

• AC/DC 24 V, Open/Close
• Running time motor 150 s / 90°
• Manual override temporary, permanent
• Connection PVC cable 1m
• for retrofit applications

Application: For rotary valves and butterfly valves with the following mechanical specifications: – ISO 5211: F05 or F07 (hole circle diameter on the flange for mounting the fitting) – ISO 5211: quadratic or flat head stem head geometry

Tappet shaft: The form fit adapter is not included in the scope of delivery (see «Accessories»).

Direct mounting: Simple direct mounting on the rotary valve or butterfly valve with mounting flange. The mounting orientation in relation to the fitting can be selected in 90° steps.

Manual override: Manual override with push-button possible (the gear is disengaged for as long as the button is pressed or remains locked).

High functional reliability: The actuator is overload protected, requires no limit switches and automatically stops when the end stop is reached.

Adjustable angle of rotation: Adjustable angle of rotation with mechanical end stops.

Electrical data:

• Nominal voltage AC/DC 24 V
• Nominal voltage frequency 50/60 Hz
• Nominal voltage range AC 19.2...28.8 V / DC 19.2...28.8 V
• Power consumption in operation 4 W
• Power consumption in rest position 2 W
• Power consumption for wire sizing 6 VA
• Connection supply / control Cable 1 m, 3 x 0.75 mm²
• Parallel operation Yes (note the performance data)

Functional data:

• Torque motor Min. 40 Nm
• Manual override Gear disengagement with push-button, can be locked
• Running time motor 150 s / 90°
• Sound power level motor max. 45 dB(A)
• Position indication Mechanically (integrated)

Safety:

• Protection class IEC/EN III Safety extra-low voltage
• Protection class UL UL Class 2 Supply
• Degree of protection IEC/EN IP54
• Degree of protection NEMA/UL NEMA 2, UL Enclosure Type 2
• EMC CE according to 2004/108/EC
• Certification IEC/EN IEC/EN 60730-1 and IEC/EN 60730-2-14
• Certification UL cULus according to UL 60730-1A, UL 60730-2-14 and CAN/CSA E60730-1:02
• Mode of operation Type 1
• Rated impulse voltage supply / control 0.8 kV
• Control pollution degree 3
• Ambient temperature 0...50°C
• Non-operating temperature -40...80°C
• Ambient humidity 95% r.h., non-condensing
• Maintenance Maintenance-free

Mechanical data:

Connection flange F05/F07

Weight: 2.1 Kg
