GR230A-5 - Belimo Rotary actuator butterfly valve 40 Nm, 90° AC 230 V, Open/Close, 3-point | ideal for rotary valves and butterfly valves

£332.64 £277.20 Price match guarantee
On request
SKU
GR230A-5
Next Supplier Stock Update: 15/03/2025
EXPLORE MORE VERSIONS AND ACCESSORIES
Manuals & Datasheets
 DATA-SHEET
DATASHEET

Product typeActuator
IP ratingIP54
Input SignalOn/Off
ManufacturerBelimo
Power Supply230Vac, 1Ph, 50Hz
Torque40 Nm
Running time140 to 150 sec
Actuator typeRotary
Ideal for butterfly valves, rotary valves

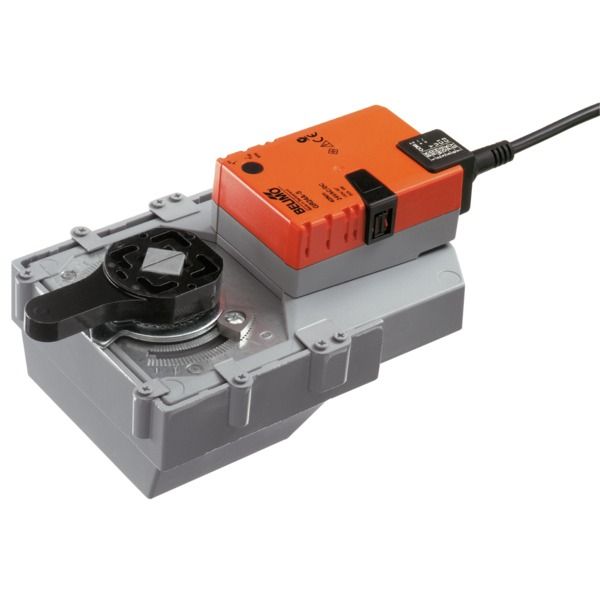

GR230A-5 - Rotary actuator butterfly valve 40 Nm, 90° AC 230 V, Open/Close, 3-point

•    Running time motor 150 s
•    IP 54, Manual override temporary, permanent
•    Connection PVC cable 1m
•    Direction of rotation reversible (right/left)

Features


  • Simple direct mounting Simple direct mounting on the damper spindle with a universal spindle clamp, supplied with an anti-rotation strap to prevent the actuator from rotating.

  • High functional reliability The actuator is overload-proof, requires no limit switches and automatically stops when the end stop is reached.

  • ISO 5211 - F05 Butterfly valve D6.. For BELIMO F05 butterfly valve D6 and other dampers with the following mechanicalspecifications:- Square stem head (14 mm) for form-fit attachment of the rotary actuator.- Hole circle (d = 50 mm) for assembly with the butterfly valve.

•    Electrical data Nominal voltage AC 100 ... 240 V, 50/60 Hz
•    Nominal voltage range AC 85 ... 265 V
•    Power consumption In operation 4 W @ nominal torque
•    At rest 2 W
•    For wire sizing 7 VA
•    Connection Cable 1 m, 3 x 0.75 mm2
•    Parallel connection Possible, note performance data
•    Functional data Torque (nominal torque) Min. 40 Nm @ nominal voltage
 •   Manual override Gearing latch disengaged with pushbutton, can be locked
 •   Running time 150 s / 90°
•    Noise level Max. 45 dB (A) (without the valve)
•    Position indication Mechanical, add-on
•    Safety Protection class II Totally insulated
•    Degree of protection IP66 NEMA 4, UL Enclosure Type 4
•    EMC CE according to 2004/108/EC
•    Low-voltage directive CE according to 2006/95/EC
•    Mode of operation Type 1 (to EN 60730-1)
•    Rated impulse voltage 4 kV (to EN 60730-1)
•    Control pollution degree 3 (to EN 60730-1)
•    Ambient temperature 0 ... +50°C
•    Non-operating temperature –20 ... +100°C in butterfly valve
•    Ambient humidity 95% r.H., non-condensating (to EN 60730-1)
•    Maintenance Maintenance-free
•    Dimensions / Weight Dimensions See «Dimensions» on page 2
•    Weight Approx.1850 g
