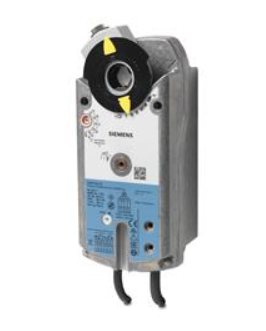

GMA136.1E - Siemens Damper Actuator 7 Nm, 90/15 s, AC / DC 24 V, 3-position, 2 End Switches
£197.99
£164.99
On request
SKU
GMA136.1E
Next Supplier Stock Update: 15/03/2025
EXPLORE MORE VERSIONS AND ACCESSORIES
Manuals & Datasheets
| DATA-SHEET |
 |
| Product type | Actuator |
| IP rating | IP54 |
| Manufacturer | Siemens |
| Power Supply | 24Vac/Vdc |
| Torque | 7 Nm |
| Running time | 90 to 105 sec |
| End Switches | 2 End Switches |
| Actuator type | Rotary |
| Fail Safe | Spring Return |
| size | 63 x 212 x 81 mm |
The delivery time for all of the Siemens Actuators on hand at IACS is 5 to 7 working days.
The Siemens GMA136.1E is an Actuator used in air ventilation and HVAC applications to open and close dampers.
The Torque used by the GMA136.1E is 7 Nm.
This Siemens Actuator requests a Power Supply of 24Vac/Vdc.
IACS has the most affordable Siemens Actuator that works with your system.
Consult the Siemens custom datasheet above or contact IACS via email for personalised assistance if you have queries about size or installation.
| Torque | 7 Nm |
| Air damper area | 1.5 m² |
| Angular rotation | 90° |
| Power consumption | 5 VA, 3.5 W |
| Positioning time | Open:90 s, Close:15 s |
| Positioning signal | 3-position |
| Spring return function | Yes |
| Degree of protection | IP54 |
| Ambient temperature, operation | -32…55 °C |
| Medium temperature | -32…55 °C |
| Ambient humidity, operation | 95 % r.h. |
| Dimensions (W x H x D) | 63 x 212 x 81 mm |
| Operating voltage | AC 24 V, DC 24 V |
| Auxiliary switch | 2 |
