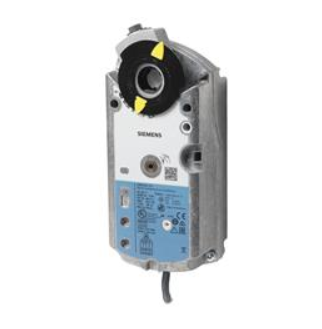

GMA131.1E - Siemens Damper Actuator 7 Nm, 90/15 s, AC / DC 24 V, 3-position
£167.99
£139.99
On request
SKU
GMA131.1E
Next Supplier Stock Update: 15/03/2025
EXPLORE MORE VERSIONS AND ACCESSORIES
Manuals & Datasheets
| DATA-SHEET |
 |
| Product type | Actuator |
| IP rating | IP54 |
| Manufacturer | Siemens |
| Power Supply | 24Vac/Vdc |
| Torque | 7 Nm |
| Running time | 90 to 105 sec |
| Actuator type | Rotary |
| Fail Safe | Spring Return |
| size | 63 x 212 x 81 mm |
Deliveries take between 5 and 7 working days for all of the Siemens Actuators that IACS has on hand.
The Siemens GMA131.1E is an Actuator utilised in HVAC and air ventilation applications to handle dampers.
The force applied by the Torque of the GMA131.1E is 7 Nm.
This damper Actuator needs to be supported by a Power Supply of 24Vac/Vdc.
IACS offers the most economical Siemens Actuators for your system.
Refer to the Siemens custom datasheet above or email IACS for tailored support if you have any issues about size or installation.
| Torque | 7 Nm |
| Air damper area | 1.5 m² |
| Angular rotation | 90° |
| Power consumption | 5 VA, 3.5 W |
| Positioning time | Open:90 s, Close:15 s |
| Positioning signal |
3-position
|
| Spring return function | Yes |
| Degree of protection | IP54 |
| Ambient temperature, operation | -32…55 °C |
| Medium temperature | -32…55 °C |
| Ambient humidity, operation | 95 % r.h. |
| Dimensions (W x H x D) | 63 x 212 x 81 mm |
| Operating voltage | AC 24 V, DC 24 V |
| Auxiliary switch | 0 |
