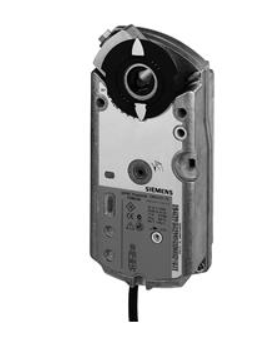

GMA126.1E - Siemens Damper Actuator 7 Nm, 90/15 s, AC / DC 24 V, On/Off, 2 End Switches
£179.99
£149.99
On request
SKU
GMA126.1E
Next Supplier Stock Update: 15/03/2025
EXPLORE MORE VERSIONS AND ACCESSORIES
Manuals & Datasheets
| DATA-SHEET |
 |
| Product type | Actuator |
| IP rating | IP54 |
| Input Signal | On/Off |
| Output Signal | 0..10Vdc |
| Manufacturer | Siemens |
| Power Supply | 24Vac/Vdc |
| Torque | 7 Nm |
| Running time | 90 to 105 sec |
| End Switches | 2 End Switches |
| Actuator type | Rotary |
| Fail Safe | Spring Return |
| size | 63 x 212 x 81 mm |
All of the Siemens Actuators that are in stock at IACS are delivered within 5 to 7 working days.
The Siemens GMA126.1E is an Actuator used in air ventilation and HVAC applications to open and close dampers.
The Torque force applied by the GMA126.1E is 7 Nm.
The Power Supply requested for this damper Actuator is 24Vac/Vdc.
You may find the ideal Siemens Actuator for your system at IACS for a reasonable price.
If you have questions concerning size or installation, refer to the Siemens custom datasheet above or email IACS for individualised support.
| Torque | 7 Nm |
| Air damper area | 1.5 m² |
| Angular rotation | 90° |
| Power consumption | 5 VA, 3.5 W |
| Positioning time | Open:90 s, Close:15 s |
| Positioning signal | 2-position |
| Spring return function | Yes |
| Degree of protection | IP54 |
| Ambient temperature, operation | -32…55 °C |
| Medium temperature | -32…55 °C |
| Ambient humidity, operation | 95 % r.h. |
| Dimensions (W x H x D) | 63 x 212 x 81 mm |
| Operating voltage | AC 24 V, DC 24 V |
| Auxiliary switch | 2 |
