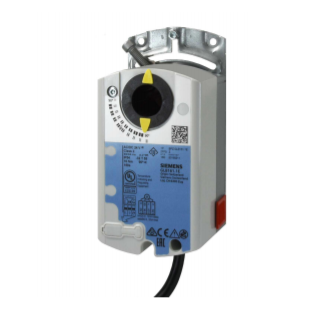

GLB146.1E- Siemens Damper Actuator 10 Nm, 150 s, AC / DC 24 V, 2/3 Position, 2 End Switches
£110.39
£91.99
On request
SKU
GLB146.1E
Next Supplier Stock Update: 16/03/2025
EXPLORE MORE VERSIONS AND ACCESSORIES
Manuals & Datasheets
| DATA-SHEET |
 |
| Product type | Actuator |
| IP rating | IP54 |
| Manufacturer | Siemens |
| Power Supply | 24Vac/Vdc |
| Torque | 10 Nm |
| Running time | 140 to 150 sec |
| End Switches | 2 End Switches |
| Actuator type | Rotary |
| size | 68 x 137 x 59.5 mm |
The delivery time for all of the Siemens Actuators on hand at IACS is 5 to 7 working days.
The Siemens GLB146.1E is an Actuator used in air ventilation and HVAC applications to open and close dampers.
The Torque used by the GLB146.1E is 10 Nm.
This Siemens Actuator requests a Power Supply of 24Vac/Vdc.
IACS has the most affordable Siemens Actuator that works with your system.
Consult the Siemens custom datasheet above or contact IACS via email for personalised assistance if you have queries about size or installation.
| Torque | 10 Nm |
| Air damper area | 1.5 m² |
| Angular rotation | 90° |
| Power consumption | 2 VA, 1.3 W |
| Positioning time | 150 s |
| Cable length | 0.9 m |
| Positioning signal | 2-position/3-position |
| Degree of protection | IP54 |
| Ambient temperature, operation | -32…55 °C |
| Dimensions (W x H x D) | 68 x 137 x 59.5 mm |
| Operating voltage | AC 24 V, DC 24 V |
| Auxiliary switch | 2 |
