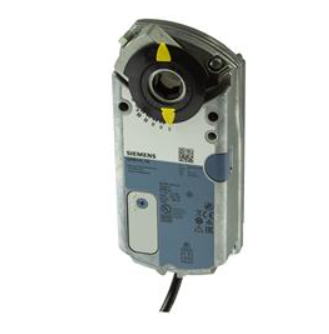

GEB161.1E - Siemens Damper Actuator 20 Nm, 150 s, AC / DC 24 V, modulating
£149.99
£124.99
On request
SKU
GEB161.1E
Next Supplier Stock Update: 11/03/2025
EXPLORE MORE VERSIONS AND ACCESSORIES
Manuals & Datasheets
| DATA-SHEET |
 |
| Product type | Actuator |
| IP rating | IP54 |
| Input Signal | 0..10 Vdc, 2..10 Vdc |
| Output Signal | 0..10Vdc |
| Manufacturer | Siemens |
| Power Supply | 24Vac/Vdc |
| Torque | 20 Nm |
| Running time | 140 to 150 sec |
| Actuator type | Rotary |
| size | 82 x 192 x 63 mm |
All of the Siemens Actuators that are in stock at IACS are delivered within 5 to 7 working days.
The Siemens GEB161.1E is an Actuator used in air ventilation and HVAC applications to open and close dampers.
The Torque force applied by the GEB161.1E is 20 Nm.
The Power Supply requested for this damper Actuator is 24Vac/Vdc.
You may find the ideal Siemens Actuator for your system at IACS for a reasonable price.
If you have questions concerning size or installation, refer to the Siemens custom datasheet above or email IACS for individualised support.
| Torque | 15 Nm |
| Air damper area | 3 m² |
| Angular rotation | 90° |
| Power consumption | 6 VA, 5.5 W |
| Positioning time | 150 s |
| Positioning signal | DC 0...10 V, DC 2...10 V |
| Degree of protection | IP54 |
| Ambient temperature, operation | -32…55 °C |
| Medium temperature | -32…55 °C |
| Ambient humidity, operation | 95 % r.h. |
| Dimensions (W x H x D) | 81 x 212 x 63 mm |
| Operating voltage | AC 24 V |
| Position feedback | DC 0...10 V |
| Auxiliary switch | 0 |
