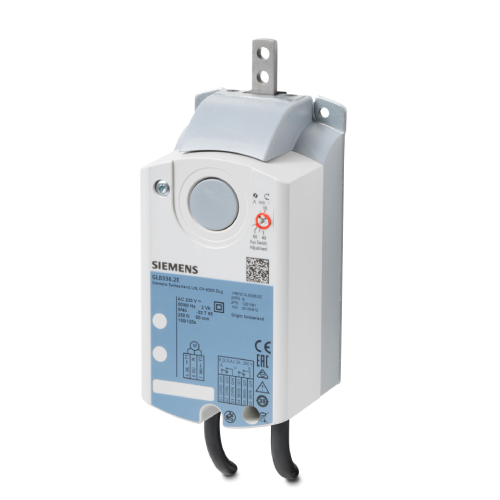

GDB331.2E - Siemens linear damper actuators AC 230V, 3-position, 125 N , 150s.
£86.39
£71.99
On request
SKU
GDB331.2E
Next Supplier Stock Update: 04/03/2025
EXPLORE MORE VERSIONS AND ACCESSORIES
Manuals & Datasheets
| DATA-SHEET |
 |
| Product type | Actuator |
| IP rating | IP40 |
| Manufacturer | Siemens |
| Power Supply | 230Vac, 1Ph, 50Hz |
| Torque | 125 N |
| Actuator type | Linear |
| size | 68 x 152 x 59 mm |
Deliveries take between 5 and 7 working days for all of the Siemens Actuators that IACS has on hand.
The Siemens GDB331.2E is an Actuator utilised in HVAC and air ventilation applications to handle dampers.
The force applied by the Torque of the GDB331.2E is 125 N.
This damper Actuator needs to be supported by a Power Supply of 230Vac.
IACS offers the most economical Siemens Actuators for your system.
Refer to the Siemens custom datasheet above or email IACS for tailored support if you have any issues about size or installation.
GDB Actuators
-For shaft dia. 8..16 mm, square 6...12 mm, min. shaft length 30 mm -With position indication and adjustable mechanical limit stop -Button for disengaging the gear train to enable manual override -With base made of steel, plastic housing and 0.9 m connecting cable
