DRC24G-7 Rotary Actuator, 90 Nm, AC/DC 24 V, 35 s - Belimo | ideal for butterfly valves

Find all parts for your ventilation system at iacs, the Free Delivery and 1-2 Delivery is available for all the Belimo Actuators in stock

The Belimo DRC24G-7 is a type of Actuator used in HVAC and ventilation systems.

This kind of Actuator rotates the damper in order to control it.

The force applied by the Torque of the DRC24G-7 is 90 Nm.

This Rotary Actuator needs to be supported by a power supply of 24Vac/Vdc.

Find at IACS the ideal Belimo Actuator compatible with your system at the best price.

If you are unsure about size or installation, refer to the Belimo custom datasheet above or message iacs to receive special instructions and a custom quote.

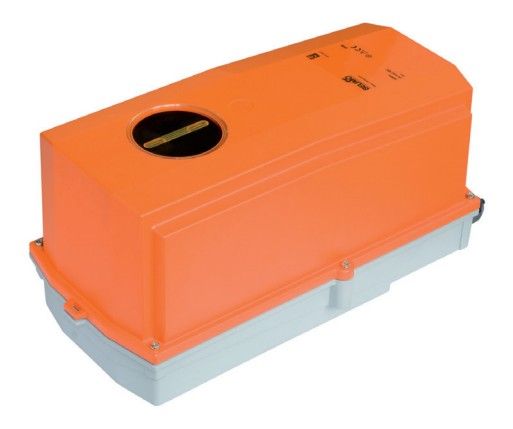

DRC24G-7 Rotary Actuator, 90 Nm, AC/DC 24 V, 35 s

• IP66
• Torque max. 90 Nm
• AC/DC 24 V, open-close
• Running time 35 s / 90°
• Manual override temporary, permanent
• Connection cable (FRNC) length = 1 m

Fields of application: The actuator is particularly suitable for utilisation in outdoor applications and is protected against the following weather conditions: - UV radiation, - rain / snow, - dirt / dust, - Humidity, - Changing atmosphere / frequent and severe temperature fluctuations (recommendation: use the actuator with integrated factory-installed heating which can be ordered separately to prevent internal condensation)

Simple direct mounting: Simple direct mounting on the butterfly valve. The mounting orientation in relation to the butterfly valve can be selected in 90° (angle) increments.

Manual override: Manual override with push-button possible (the gear is disengaged for as long as the button is pressed or remains locked). The housing cover must be removed for manual override.

High functional reliability: The actuator is overload protected, requires no limit switches and automatically stops when the end stop is reached.

Combination valve/actuator: For valves with the following mechanical specifications in accordance with ISO 5211 F07: - Square stem head SW = 17 mm for form-fit coupling of the rotary actuator. - Hole circle d = 70 mm

Torque not constant: Due to the non linear torque characteristic the actuator can only be used for butterfly valves and not for other armatures.

Electrical Data:

• Nominal voltage AC/DC 24 V
• Nominal voltage frequency 50/60 Hz
• Nominal voltage range AC 19.2...28.8 V / DC 21.6...28.8 V
• Power consumption in operation 9 W
• Power consumption in rest position 2 W
• Power consumption for wire sizing 12 VA
• Connection supply / control Cable 1 m, 3 x 0.75 mm²
• Parallel operation No

Functional Data:

• Torque motor Max. < 90 Nm (not constant)
• Manual override Gear disengagement with push-button, can belocked
• Running time motor 35 s / 90°
• Sound power level motor 62 dB(A)
• Position indication Yes

Safety:

• Protection class IEC/EN III Safety extra-low voltage
• Protection class UL UL Class 2 Supply
• Degree of protection IEC/EN IP66
• Degree of protection NEMA/UL NEMA 4, UL Enclosure Type 4
• EMC CE according to 2004/108/EC
• Certification IEC/EN IEC/EN 60730-1 and IEC/EN 60730-2-14
• Certification UL cULus according to UL 60730-1A, UL 60730-2-14 and CAN/CSA E60730-1:02
• Mode of operation Type 1
• Rated impulse voltage supply / control 0.8 kV
• Control pollution degree 4
• Ambient temperature -30...50°C
• Ambient temperature note -40...50°C for actuator with integrated heating
• Non-operating temperature -40...80°C
• Ambient humidity 100% r.h.
• Maintenance Maintenance-free

Mechanical Data: Connection flange F07

Weight: 5.8 kg
