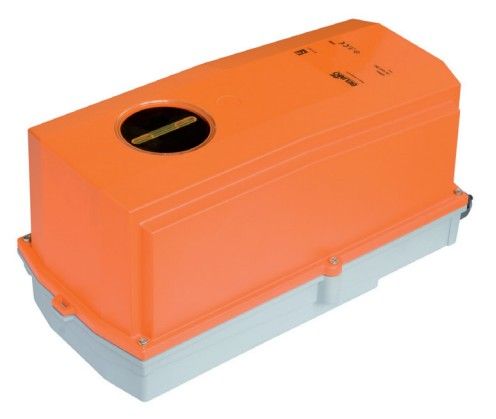

DRC24G-5 Rotary Actuator, 90 Nm, AC/DC 24 V, 35 s - Belimo | ideal for butterfly valves

At IACS we provide Free Delivery and Next 1-2 day Delivery for all the Belimo Actuators in stock.

The Belimo DRC24G-5 is an Actuator used in HVAC applications and air ventilation systems.

This type of Actuator applies a Rotary motion to regulate the damper.

The Torque force applied by the DRC24G-5 is 90 Nm.

The power supply requested for this Rotary Actuator is 24Vac/Vdc.

If you have questions concerning size or installation, refer to the Belimo custom datasheet above or email iacs for individualised support.

DRC24G-5 Rotary Actuator, 90 Nm, AC/DC 24 V, 35 s

• IP66
• Torque max. 90 Nm
• AC/DC 24 V
• Running time 35s / 90°
• open-close
• Manual override temporary, permanent
• Connection cable (FRNC) length = 1 m

Fields of application: The actuator is particularly suitable for utilisation in outdoor applications and is protected against the following weather conditions: - UV radiation, - rain / snow, - dirt / dust, - Humidity, - Changing atmosphere / frequent and severe temperature fluctuations (recommendation: use the actuator with integrated factory-installed heating which can be ordered separately to prevent internal condensation)

Simple direct mounting: Simple direct mounting on the butterfly valve. The mounting orientation in relation to the butterfly valve can be selected in 90° (angle) increments.

Manual override: Manual override with push-button possible (the gear is disengaged for as long as the button is pressed or remains locked). The housing cover must be removed for manual override.

High functional reliability: The actuator is overload protected, requires no limit switches and automatically stops when the end stop is reached.

Combination valve/actuator: For valves with the following mechanical specifications in accordance with ISO 5211 F05: - Square stem head SW = 14 mm for form-fit coupling of the rotary actuator. - Hole circle d = 50 mm

Torque not constant: Due to the non linear torque characteristic the actuator can only be used for butterfly valves and not for other armatures.

Electrical Data:

• Nominal voltage AC/DC 24 V
• Nominal voltage frequency 50/60 Hz
• Nominal voltage range AC 19.2...28.8 V / DC 21.6...28.8 V
• Power consumption in operation 9 W
• Power consumption in rest position 2 W
• Power consumption for wire sizing 12 VA
• Connection supply / control Cable 1 m, 3 x 0.75 mm²
• Parallel operation No

Functional Data:

• Torque motor Max. < 90 Nm (not constant)
• Manual override Gear disengagement with push-button, can be locked
• Running time motor 35 s / 90°
• Sound power level motor 62 dB(A)
• Position indication Yes

Safety:

• Protection class IEC/EN III Safety extra-low voltage
• Protection class UL UL Class 2 Supply
• Degree of protection IEC/EN IP66
• Degree of protection NEMA/UL NEMA 4, UL Enclosure Type 4
• EMC CE according to 2004/108/EC
• Certification IEC/EN IEC/EN 60730-1 and IEC/EN 60730-2-14
• Certification UL cULus according to UL 60730-1A, UL 60730-2-14 and CAN/CSA E60730-1:02
• Mode of operation Type 1
• Rated impulse voltage supply / control 0.8 kV
• Control pollution degree 4
• Ambient temperature -30...50°C
• Ambient temperature note -40...50°C for actuator with integrated heating
• Non-operating temperature -40...80°C
• Ambient humidity 100% r.h.
• Maintenance Maintenance-free

Mechanical data: Connection flange F05

Weight: 5.8 kg
