The Belimo DRC24A-5 is a type of Actuator used in HVAC and ventilation systems.

This kind of Actuator rotates the damper in order to control it.

The force applied by the Torque of the DRC24A-5 is 90 Nm.

This Rotary Actuator needs to be supported by a power supply of 24Vac/Vdc.

Find the appropriate Belimo Actuator for your system at the greatest price at iacs.

If you have questions about size or installation, consult the Belimo custom datasheet above or send an email to iacs to get personalised guidance.

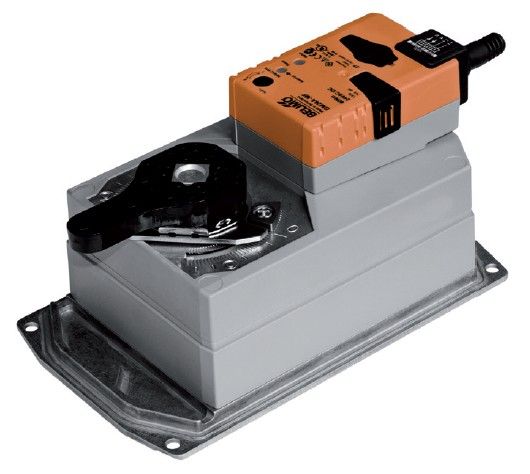

DRC24A-5 Rotary Actuator, 90 Nm, AC/DC 24 V, 35 s

• IP 54
• Max. torque 90 Nm
• AC/DC 24 V
• Running time 35 s/90°
• OPEN-CLOSE
• Manual override temporary, permanent
• Connection cable length 1 m (PVC)

Simple direct mounting: Simple direct mounting on the butterfly valve. The mounting orientation in relation to the butterfly valve can be selected in 90° (angle) increments.

Manual override: Manual override with push-button possible (the gear is disengaged for as long as the button is pressed or remains locked).

High functional reliability: The actuator is overload protected, requires no limit switches and automatically stops when the end stop is reached.

Combination valve/actuator: For valves with the following mechanical specifications in accordance with ISO 5211 F05: - Square stem head SW = 14 mm for form-fit coupling of the rotary actuator. - Hole circle d = 50 mm

Torque not constant: Due to the non linear torque characteristic the actuator can only be used for butterfly valves and not for other armatures.

Electrical Data:

• Nominal voltage AC/DC 24 V
• Nominal voltage frequency 50/60 Hz
• Nominal voltage range AC 19.2...28.8 V / DC 19.2...28.8 V
• Power consumption in operation 9 W
• Power consumption in rest position 2 W
• Power consumption for wire sizing 12 VA
• Connection supply / control Cable 1 m, 3 x 0.75 mm²
• Parallel operation No

Functional Data:

• Torque motor Max. < 90 Nm (not constant)
• Manual override Gear disengagement with push-button, can be
• locked
• Running time motor 35 s / 90°
• Sound power level motor 45 dB(A)
• Position indication Mechanically (integrated)

Safety:

• Protection class IEC/EN III Safety extra-low voltage
• Protection class UL UL Class 2 Supply
• Degree of protection IEC/EN IP54
• Degree of protection NEMA/UL NEMA 2, UL Enclosure Type 2
• EMC CE according to 2004/108/EC
• Certification IEC/EN IEC/EN 60730-1 and IEC/EN 60730-2-14
• Certification UL cULus according to UL 60730-1A, UL 60730-2-14 and CAN/CSA E60730-1:02
• Mode of operation Type 1
• Rated impulse voltage supply / control 0.8 kV
• Control pollution degree 3
• Ambient temperature -30...50°C
• Non-operating temperature -40...80°C
• Ambient humidity 95% r.h., non-condensing
• Maintenance Maintenance-free

Mechanical Data: Connection flange F05

Weight: approx. 4.1 kg
