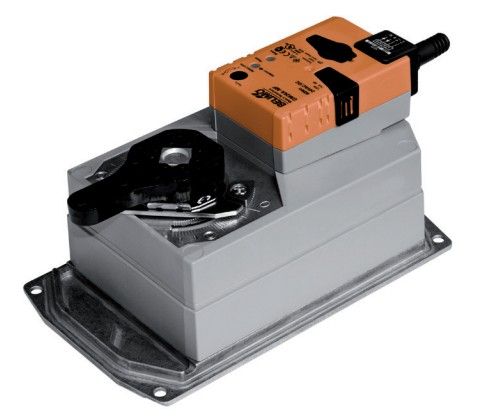

DR230A-5 Belimo Rotary Actuator, 90 Nm, AC 230 V, 150 s | ideal for butterfly valves

DR230A-5 Rotary Actuator, 90 Nm, AC 230 V, 150 s

• IP 54
• Max. nominal torque 90 Nm
• AC 230 V
• Running time 150 s/ 90º
• OPEN-CLOSE
• Manual override temporary, permanent
• Connection cable length 1 m (PVC)

Simple direct mounting: Simple direct mounting on the butterfly valve. The mounting orientation in relation to the butterfly valve can be selected in 90° (angle) increments.
Manual override: Manual override with push-button possible (the gear is disengaged for as long as the button is pressed or remains locked).
High functional reliability: The actuator is overload protected, requires no limit switches and automatically stops when the end stop is reached.
Combination valve/actuator: For valves with the following mechanical specifications in accordance with ISO 5211, F05:- Square stem head SW = 14 mm for form-fit coupling of the rotary actuator. - Hole circle d = 50 mm
Torque not constant: Due to the non linear torque characteristic the actuator can only be used for butterfly
valves and not for other armatures.

Electrical Data:

• Nominal voltage AC 230 V
• Nominal voltage frequency 50/60 Hz
• Nominal voltage range AC 85...265 V
• Power consumption in operation 5 W
• Power consumption in rest position 2 W
• Power consumption for wire sizing 9 VA
• Connection supply / control Cable 1 m, 3 x 0.75 mm²
• Parallel operation No

Functional Data:

• Torque motor Max. < 90 Nm (not constant)
• Manual override Gear disengagement with push-button, can be locked
• Running time motor 150 s / 90°
• Sound power level motor 45 dB(A)
• Position indication Mechanically (integrated)

Safety:

• Protection class IEC/EN II Protective insulated
• Protection class UL II Protective insulated
• Degree of protection IEC/EN IP54
• Degree of protection NEMA/UL NEMA 2, UL Enclosure Type 2
• EMC CE according to 2004/108/EC
• Low voltage directive CE according to 2006/95/EC
• Certification IEC/EN IEC/EN 60730-1 and IEC/EN 60730-2-14
• Certification UL cULus according to UL 60730-1A, UL 60730-2-14 and CAN/CSA E60730-1:02
• Mode of operation Type 1
• Rated impulse voltage supply / control 2.5 kV
• Control pollution degree 3
• Ambient temperature -30...50°C
• Non-operating temperature -40...80°C
• Ambient humidity 95% r.h., non-condensing
• Maintenance Maintenance-free

Mechanical Data: Connection flange F05

Weight: 4.1 kg
