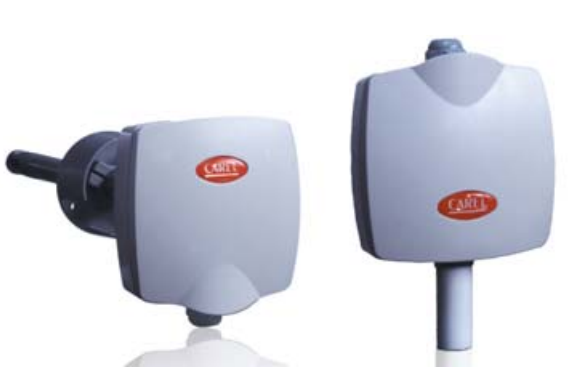

DPDC11400N - Carel Duct monting Temperature (-10T60 °C) and humidity (10 to 90% rH) sensor, MODBUS RS485 optoisolated output Neutral
£477.59
£397.99
On request
SKU
DPDC11400N
Next Supplier Stock Update: 11/03/2025
EXPLORE MORE VERSIONS AND ACCESSORIES
Manuals & Datasheets
| MANUAL | DATA-SHEET | BROCHURE |
 |
|
|
| Product type | Sensors & Stats |
| IP rating | IP55 |
| Output Signal | Modbus RTU - RS485 |
| Manufacturer | Carel |
| Sensor Type | Temperature and Humidity |
| Sensor characteristics | Duct Mounted |
DPDC11400N - Duct monting Temperature (-10T60 °C) and humidity (10 to 90% rH) sensor, MODBUS RS485 optoisolated output Neutral
The CAREL DP series electronic probes are designed for air-conditioning and air handling, heating and refrigeration applications, to be used in combination with the corresponding CAREL controllers. Versions are available for rooms, industrial environments and ducts. These differ in terms of assembly, the type of output signal and the models: temperature, humidity or combined. Versions are available with temperature output with resistive NTC.DPDC11400N - Duct monting Temperature (-10T60 °C) and humidity (10 to 90% rH) sensor, MODBUS RS485 optoisolated output Neutral
|
TECHNICAL SPECIFICATION |
|
|
Power supply |
12 to 24 Vac +/-10% or 8 to 32 Vdc (min-max) |
|
Power input |
direct serial version type-max: 5 to 12 mA @ 12 Vdc power supply opto-isolated serial version type-max: 14 to 20mA @ 12 Vdc power supply |
|
Temperature sensor Humidity sensor |
NTC 10Kohm at 25 °C 1% Capacitive sensor |
|
Storage |
-20T70 °C ; 20 to 90%rh non-condensing |
|
Output signal |
RS485 serial |
|
Environmental pollution |
normal |
|
Case index of protection |
IP55 |
