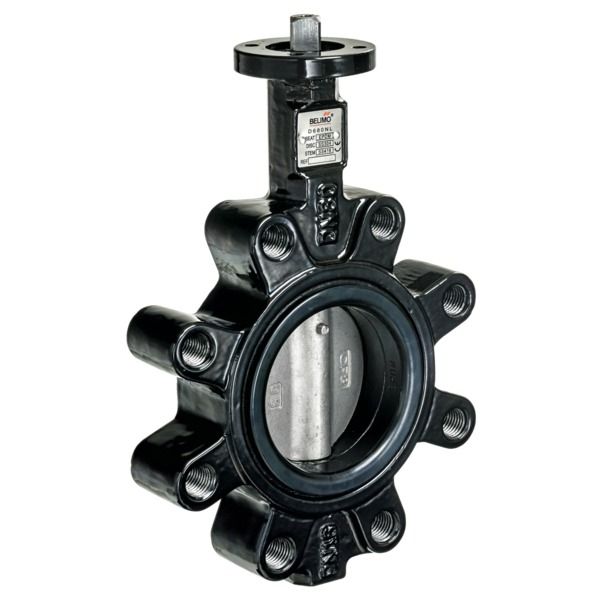

D650NL - Belimo 2-way Butterfly valve, DN 50

All in-stock Belimo Butterfly Valves with iacs are delivered for free or within 1-2 days.

The Belimo D650NL is a Valve used in HVAC applications (heating, ventilation, and air conditioning) systems as a control or shutdown Valve.

The Valve is known and has a Diameter Nominal ofDN 50.

IACS can help you get the best-priced Belimo Butterfly Valve for your system.

If you have any queries concerning size or installation, please refer to the Belimo custom datasheet above or contact iacs by email.

Features

• Mode of operation The butterfly valve is opened or closed completely by an open-close rotary actuator. Continuousrotary actuators are controlled by a commercially available controller and move the valve discsinto any position desired. The disc made of stainless steel is pressed into the soft-sealing EPDM seat by a rotarymovement and ensures leakage rate A (tight). The flow rate losses are slight in open position and the kvs value is high.


• Manual override Manual throttling or shut-off can be carried out with a lever or a worm gear (see «Accessories»). – With lever (DN 25 ... 150): Adjustable in 10 ratchet steps with position indication(0 = 0° ; 9 = 90° ). – With worm gear (DN 25 ... 700): Steplessly adjustable (self-locking) with position indication.

•    Functional data Media Cold and warm water. water with max 50% volume of glycol
•    Media temperature –20°C ... +120°C
•    Rated pressure ps 1600 kPa
•    Leakage rate A, tight (EN 12266-1)
•    Pipe connectors DN 50 ... DN 150 Flange PN 10 / PN 16 (according to ISO 7005-2)
•    DN 200 ... DN 700 Flange PN 16 (according to ISO 7005-2)
•    Suitable connecting flanges According to ISO 7005-2 and EN 1092-2
•    Angle of rotation 90°
•    Installation position Vertical to horizontal (in relation to the stem)
•    Maintenance Maintenance-free
•    Materials Fitting EN-JS1030 (GGG 40), Epoxy powder-coating (RAL 5002)
•    Disc DIN/EN 1.4301 / AISI SS 304 (Stainless steel)
•    Stem DIN/EN 1.4005 / AISI SS 416 (Stainless steel)
•    Seat EPDM
•    Stem seal EPDM O-ring
•    Stem bearing RPTFE
