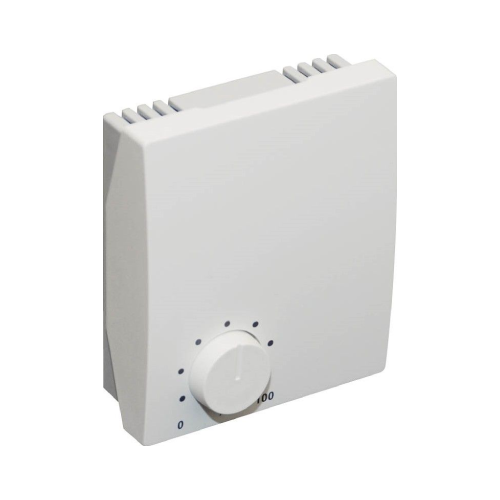

CRP24-B1 - Belimo Wall mounting potenziometer Range 0...100% AC/DC 24 V

CRP24-B1 - Positioner for wall mounting Range 0...100% AC/DC 24 V, from ..M230ASR

 •    Output 0...10 V / 2...10 V switchable
•    Input for Y overriding
•    Housing colour white RAL 9003
•    Colour of socket, light grey NCS 2005-R80B

Features

• Application The positioner is used for the control of modulating damper actuators. It can also be used as a minimum positioner or together with temperature controllers for shifting setpoints.


• Large range The adjustment range is 0 ... 100%. Proportionate to the position of the rotary knob, a control signal Y is generated which is either DC 2 ... 10 V or DC 0 ... 10 V or a position change occurs at the actuator within the range of 0 ... 100% (Min … Max).


• Simple conversion The changeover from DC 2 … 10 V to DC 0 … 10 V is simple to accomplish by means of a slide switch under the front cover.

•    Technical data LF230, LF230-S
•    Electrical data Nominal voltage AC 24V 50/60 Hz / DC 24V
•    Dimensioning 0.7 VA, without actuators
•    Power supply range AC/DC 19.2 … 28.8V
•    ConnectionsTerminal block 1 … 3: 2.5 mm2
•    Terminal block 4 … 8: 1.5 mm2
•    Functional dataOperation– Rotary knob for setpoint adjustment 0 ... 100%
•    Communication connection for field devices 2 x PP (for PC-Tool, ZTH-GEN, etc.)
•    Input 1 x digital– Digital inputContact rating 10 mA
•    Output 1x analogue– Control signal Y0/2 ... 10V, max. 1 mA
•    Norms and Standards Protection class III Safety extra-low voltage
•    Degree of protectionIP30 (EN 60529)
•    Mode of operationType 1 (EN60730-1)EMCCE in accordance with 2004/108/EC
•    Ambient conditions – Operation0 … +50°C / 20 … 90% r.h. (non-condensating) – Transport and storage–25 … +70°C / 20 … 90% r.h. (non-condensating)
•    Dimensions / Weight Dimensions (H x W x D)99 x 84 x 32 mm
•    Weight 105 g
•    Housing colours Baseplate NCS2005-R80B light grey (corresponds approximately to RAL 7035)
•    CoverRAL9003 signal white
