CQ24A-SR-T Zone Rotary Actuator AC/DC 24 V, 75 s - Belimo | ideal for zone valves

Find all the components for your ventilation system at IACS. All Belimo Actuators on hand are eligible for Free Delivery and 1-2 Delivery.

The Belimo CQ24A-SR-T is a kind of Actuator used in HVAC applications and air ventilation systems.

To control the damper, this kind of Actuator turns it by Rotary motion.

The Torque used by the CQ24A-SR-T is 1 Nm.

This Belimo Actuator requests a power supply of 24Vac/Vdc.

Find at IACS the ideal Belimo Actuator compatible with your system at the best price.

If you are unsure about size or installation, refer to the Belimo custom datasheet above or message iacs to receive special instructions and a custom quote.

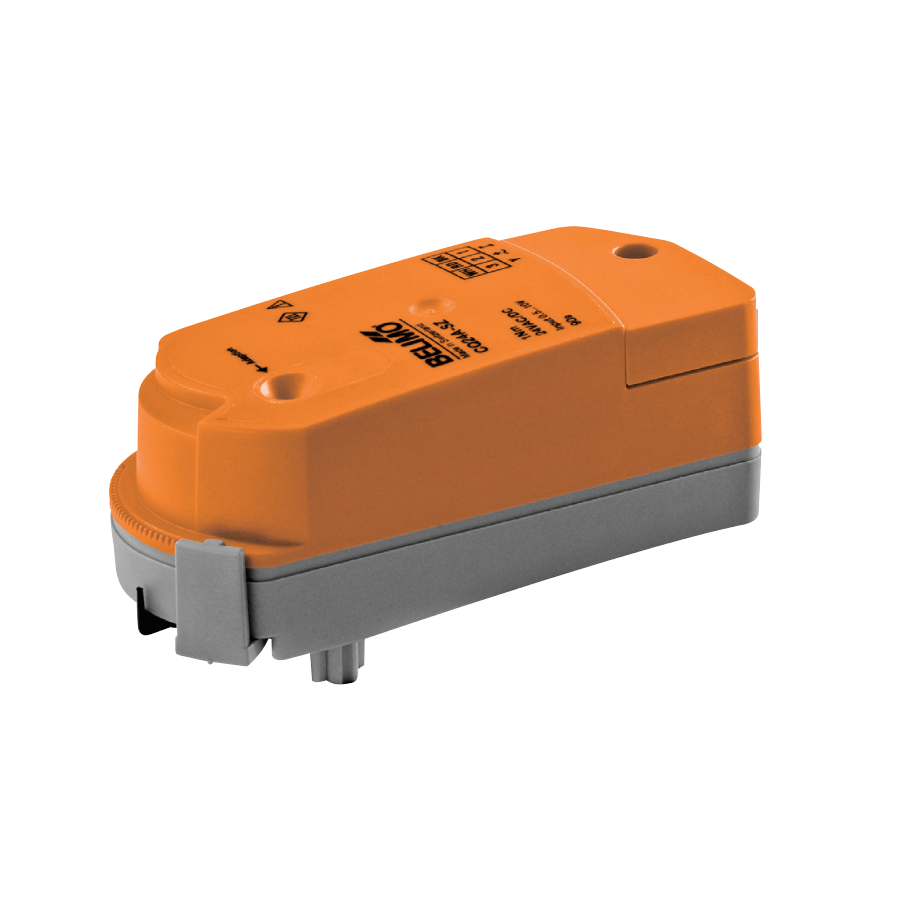

CQ24A-SR-T Zone Rotary Actuator AC/DC 24 V, 75 s

• Modulating
• Operating range DC 2...10 V
• Motor running time 75 s
• Connection with terminals, IP 40
• Adjustable flow rate value

Mode of operation: The actuator is connected with a standard modulating signal of DC 0...10V and drives to the position defined by the positioning signal.

Simple direct mounting: Tool-free snap assembly. The actuator can be plugged on the valve by hand (Caution! Just vertical movements). Pins must match the holes on the flange. The mounting orientation in relation to the valve can be selected in 180° increments. (Possible two times)

Manual override: Click out the actuator and rotate the valve stem with the help of the actuator.

High functional reliability: The actuator is overload protected, requires no limit switches in intermediate positions and automatically stops when the end stop is reached (at rest).

Adjustable angle of rotation: The angle of rotation of the actuator can be changed by clip in 2.5° increments. This is used to set the maximum flow rate of the valve.

kv setting: Adjustable kv-values (C2..Q- ..) / max-values (C2..QP (T) - ..) are given in the respective zone valve data sheets. 2-way valve: Remove end stop clip and place at desired position. 3-way valve: Remove end stop clip (change-over application).

Electrical data:

• Nominal voltage AC/DC 24 V
• Nominal voltage frequency 50/60 Hz
• Nominal voltage range AC 19.2...28.8 V / DC 21.6...28.8 V
• Power consumption in operation 0.3 W
• Power consumption in rest position 0.2 W
• Power consumption for wire sizing 0.6 VA
• Connection supply / control Terminals 2.5 mm² (cable Ø 6.3...6.8 mm, 3-wire)
• Parallel operation Yes (note the performance data)

Functional data:

• Torque motor 1 Nm
• Positioning signal Y DC 0...10 V
• Positioning signal Y note Input impedance 100 kΩ
• Operating range Y DC 2...10 V
• Manual override With actuator (clicked out) adjustable
• Actuating time 75 s / 90°
• Sound power level motor 35 dB(A)
• Position indication Yes
• Flow setting see product features

Safety:

• Protection class IEC/EN III Safety extra-low voltage
• Degree of protection IEC/EN IP40
• EMC CE according to 2004/108/EC
• Certification IEC/EN IEC/EN 60730-1 and IEC/EN 60730-2-14
• Mode of operation Type 1
• Rated impulse voltage supply / control 0.8 kV
• Control pollution degree 3
• Ambient temperature 5...40°C
• Non-operating temperature -7...50°C
• Ambient humidity 95% r.h., non-condensing
• Maintenance Maintenance-free

Weight approx.: 0.15 kg
