CM24-R Damper actuator 2 Nm, 75 s / 90°, AC / DC 24 V, Open/Close - Belimo | Belimo Actuators
£93.24
£77.70
On request
SKU
CM24-R
Next Supplier Stock Update: 16/03/2025
EXPLORE MORE VERSIONS AND ACCESSORIES
Manuals & Datasheets
| DATA-SHEET |
 |
| Product type | Actuator |
| IP rating | IP54 |
| Input Signal | On/Off |
| Manufacturer | Belimo |
| Power Supply | 24Vac/Vdc |
| Torque | 2 Nm |
| Running time | 65 to 80 sec |
| Actuator type | Rotary |
Find all the components for your ventilation system at IACS. All Belimo Actuators on hand are eligible for Free Delivery and 1-2 Delivery.
The Belimo CM24-R is a kind of Actuator used to manage dampers in HVAC applications and systems.
To control the damper, this kind of Actuator turns it by Rotary motion.
The Torque used by the CM24-R is 2 Nm.
This Belimo Actuator requests a power supply of 24Vac/Vdc.
Find at IACS the ideal Belimo Actuator compatible with your system at the best price.
If you are unsure about size or installation, refer to the Belimo custom datasheet above or message iacs to receive special instructions and a custom quote.

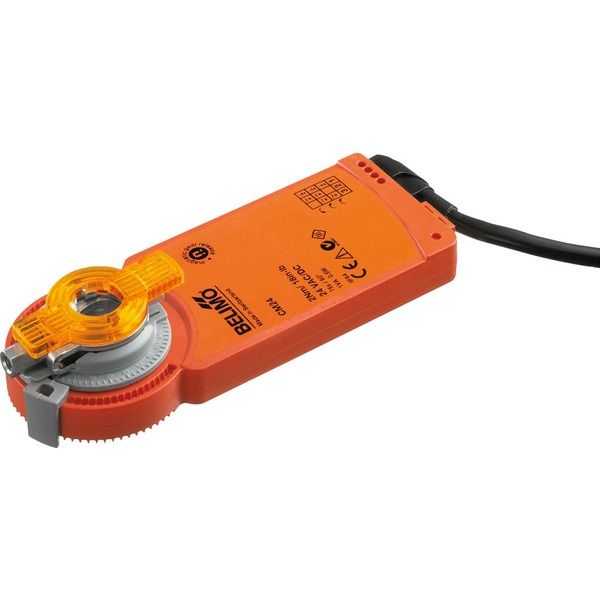

CM24-R Damper actuator 2 Nm, 75 s / 90°, AC / DC 24 V, Open/Close
• Damper actuator
• 2 Nm, 75 s,
• AC / DC 24 V, Open/Close, 3-point
• IP 54, Manual override Gear disengagement with magnet
• Control with single- / 2-wire contact
• Connection PVC cable 1m
• Direction of rotation rotation to the right (cw)
• Angle of rotation limit. mechanical integral
Features
- Mode of operation on the damper spindle with a universal spindle clamp (6 ... 12.7 mm). The actuator is then secured with the anti-rotation strap supplied, to prevent it from rotating.
- Manual override with magnet possible (the gear is disengaged as long as the magnet adheres to the symbol U. The magnet for gear disengagement is integrated in the position indicator.
- Adjustable angle of rotation with mechanical end stops.
- High functional reliability actuator is overload-proof, requires no limit switches and automatically stops when the end stop is reached.
• Nominal voltage AC 24 V, 50/60 Hz / DC 24 V
• Nominal voltage range AC/DC 19.2 ... 28.8 V
• Power consumption In operation At rest For wire sizing 0.5 W @ nominal torque 0.2 W 1 VA
• Connection Cable 1 m, 3 x 0.75 mm2
• Torque (nominal torque) Min. 2 Nm @ nominal voltage
• Direction of rotation See «Type overview»
• Gear disengagement with magnet Angle of rotation Without limit With limit Endless Fixed 315° or 0 ... 287.5° with mechanical end stops, can be adjusted in 2.5° increments
• Running time 75 s / 90°
• Posotion accuracy ±5%
• Sound power level Max. 35 dB (A)
• Position indicator Mechanical, pluggable (with integrated magnet for gear disengagement)
• Protection class III Safety extra-low voltage / UL Class 2 Supply
• Protection class II totally insulated
• Degree of protection IP54 in any mounting position NEMA2, UL Enclosure Type 2
• EMC CE according to 2004/108/EC
• Certification cULus according to UL 60730-1A and UL 60730-2-14 and CAN/CSA E60730-1:02 Certified to IEC/EN 60730-1 and IEC/EN 60730-2-14
• Mode of operationType 1 (EN 60730-1)
• Rated impulse voltage 0.8 kV (EN 60730-1)
• Control pollution degree 3 (EN 60730-1)
• Ambient temperature –30 ... +50°C
• Non-operating temperature –40 ... +80°C
• Ambient humidity 95% r.H., non-condensating (EN 60730-1)
• Maintenance – free
