CM230G-R Damper actuator 2 Nm, 75 s / 90°, AC 230 V, Open/Close - Belimo

At IACS we provide Free Delivery and Next 1-2 day Delivery for all the Belimo Actuators in stock.

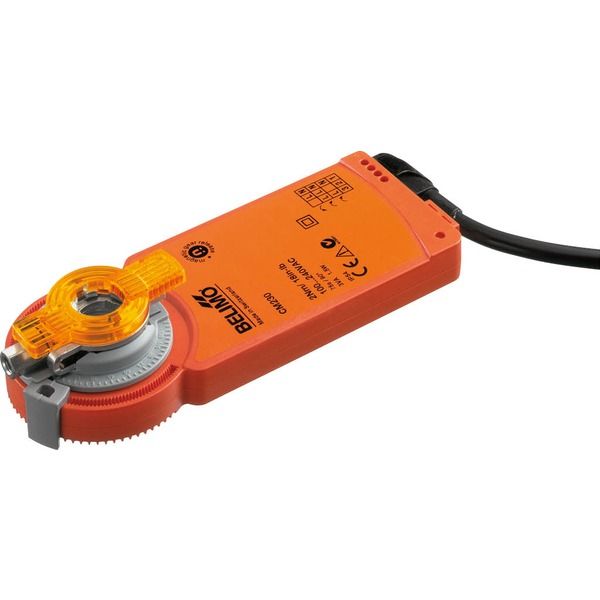

The Belimo CM230G-R is an Actuator used in HVAC systems and applications to manage dampers.

This type of Actuator applies a Rotary motion to regulate the damper.

The Torque force applied by the CM230G-R is 2 Nm.

The power supply requested for this Rotary Actuator is 230Vac.

Find at IACS the ideal Belimo Actuator compatible with your system at the best price.

If you are unsure about size or installation, refer to the Belimo custom datasheet above or message iacs to receive special instructions and a custom quote.

CM230G-R Damper actuator 2 Nm, 75 s / 90°, AC 230 V, Open/Close

•    Damper actuator
•    2 Nm, 75 s / 90°,
•    AC 230 V, Open/Close, 3-point
•    IP 66, Manual override Gear disengagement with magnet
•    Control with single- / 2-wire contact
•    Connection PVC cable 1m
•    Direction of rotation rotation to the right (cw)
•    Angle of rotation limit. mechanical integral

Features

• Simple direct mounting Simple direct mounting on the damper spindle with a universal spindle clamp (∅ 6 ... 12.7 mm). The actuator is then secured with the anti-rotation strap supplied, to prevent it from rotating.


• Manual override with magnet possible (the gear is disengaged as long as the magnet adheres to the symbol U). The magnet for gear disengagement is integrated in the position indicator.


• Adjustable angle of rotation Adjustable angle of rotation with mechanical end stops.


• High functional reliability The actuator is overload-proof, requires no limit switches and automatically stops when the end stop is reached.

•    Nominal voltage AC 100 ... 240 V, 50/60 Hz
•    Nominal voltage range AC 85 ... 265 V
•    Power consumptionIn operation At rest For wire sizing 1.5 W @ nominal torque 1 W 3 VA
•    Connection Cable 1 m, 3 x 0.75 mm2
•    Functional data Torque (nominal torque) Min. 2 Nm @ nominal voltage
•    Direction of rotation See «Type overview»
•    Manual override Gear disengagement with magnet
•    Angle of rotation Without limit With limit Endless Fixed 315° or 0 ... 287.5° with mechanical end stops, can be adjusted in 2.5° increments
•    Running time 75 s / 90°
•    Sound power level Max. 35 dB (A)
•    Position indicator Mechanical, pluggable (with integrated magnet for gear disengagement)
•    Safety Protection class II totally insulated
•    Degree of protection IP66 NEMA2, UL Enclosure Type 2
•    EMC Low voltage directive CE according to 2004/108/EC CE according to 2006/95/EC
•    Certification cULus according to UL 60730-1A and UL 60730-2-14 and CAN/CSA E60730-1:02 Certified to IEC/EN 60730-1 and IEC/EN 60730-2-14
•    Mode of operation Type 1 (EN 60730-1)
•    Rated impulse voltage 2.5 kV (EN 60730-1)
•    Control pollution degree 3 (EN 60730-1)
•    Ambient temperature –30 ... +50°C
•    Non-operating temperature –40 ... +80°C
•    Ambient humidity 95% r.H., non-condensating (EN 60730-1)
•    Maintenance – free
