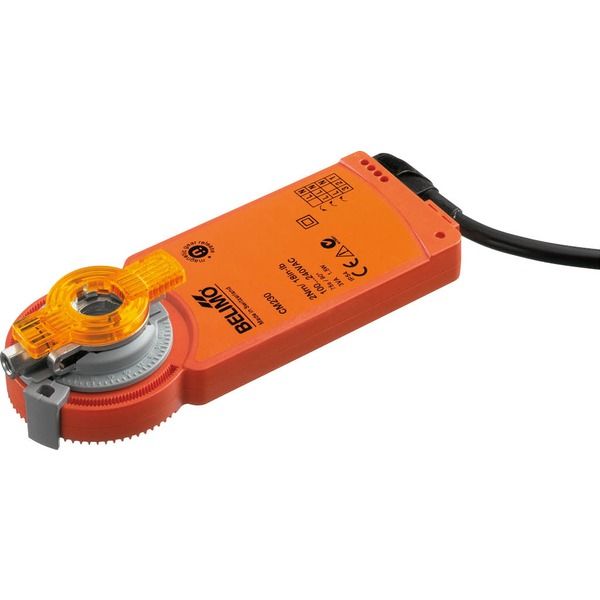

CM230G-L Damper actuator 2 Nm, 75 s / 90°, AC 230 V, Open/Close - Belimo
£103.32
£86.10
On request
SKU
CM230G-L
Next Supplier Stock Update: 16/03/2025
EXPLORE MORE VERSIONS AND ACCESSORIES
Manuals & Datasheets
| DATA-SHEET |
 |
| Product type | Actuator |
| IP rating | IP54 |
| Input Signal | On/Off |
| Manufacturer | Belimo |
| Power Supply | 230Vac, 1Ph, 50Hz |
| Torque | 2 Nm |
| Running time | 65 to 80 sec |
| Actuator type | Rotary |
Find all the components for your ventilation system at IACS. All Belimo Actuators on hand are eligible for Free Delivery and 1-2 Delivery.
The Belimo CM230G-L is a kind of Actuator used to manage dampers in HVAC applications and systems.
To control the damper, this kind of Actuator turns it by Rotary motion.
The Torque used by the CM230G-L is 2 Nm.
This Belimo Actuator requests a power supply of 230Vac.
The ideal Belimo Actuators for your system are most affordable at iacs.If you have questions concerning size or installation, refer to the Belimo custom datasheet above or email iacs for individualised support.
CM230G-L Damper actuator 2 Nm, 75 s / 90°, AC 230 V, Open/Close
• Damper actuator
• 2 Nm, 75 s / 90°,
• AC 230 V, Open/Close, 3-point
• IP 66, Manual override Gear disengagement with magnet
• Control with single- / 2-wire contact
• Connection PVC cable 1m
• Direction of rotation rotation to the left (ccw)
• Angle of rotation limit. mechanical integral
Features
- Simple direct mounting Simple direct mounting on the damper spindle with a universal spindle clamp (∅ 6 ... 12.7 mm). The actuator is then secured with the anti-rotation strap supplied, to prevent it from rotating.
- Manual override with magnet possible (the gear is disengaged as long as the magnet adheres to the symbol U). The magnet for gear disengagement is integrated in the position indicator.
- Adjustable angle of rotation Adjustable angle of rotation with mechanical end stops.
- High functional reliability The actuator is overload-proof, requires no limit switches and automatically stops when the end stop is reached.
• Nominal voltage AC 100 ... 240 V, 50/60 Hz
• Nominal voltage range AC 85 ... 265 V
• Power consumptionIn operation At rest For wire sizing 1.5 W @ nominal torque 1 W 3 VA
• Connection Cable 1 m, 3 x 0.75 mm2
• Functional data Torque (nominal torque) Min. 2 Nm @ nominal voltage
• Direction of rotation See «Type overview»
• Manual override Gear disengagement with magnet
• Angle of rotation Without limit With limit Endless Fixed 315° or 0 ... 287.5° with mechanical end stops, can be adjusted in 2.5° increments
• Running time 75 s / 90°
• Sound power level Max. 35 dB (A)
• Position indicator Mechanical, pluggable (with integrated magnet for gear disengagement)
• Safety Protection class II totally insulated
• Degree of protection IP66 NEMA2, UL Enclosure Type 2
• EMC Low voltage directive CE according to 2004/108/EC CE according to 2006/95/EC
• Certification cULus according to UL 60730-1A and UL 60730-2-14 and CAN/CSA E60730-1:02 Certified to IEC/EN 60730-1 and IEC/EN 60730-2-14
• Mode of operation Type 1 (EN 60730-1)
• Rated impulse voltage 2.5 kV (EN 60730-1)
• Control pollution degree 3 (EN 60730-1)
• Ambient temperature –30 ... +50°C
• Non-operating temperature –40 ... +80°C
• Ambient humidity 95% r.H., non-condensating (EN 60730-1)
• Maintenance – free
