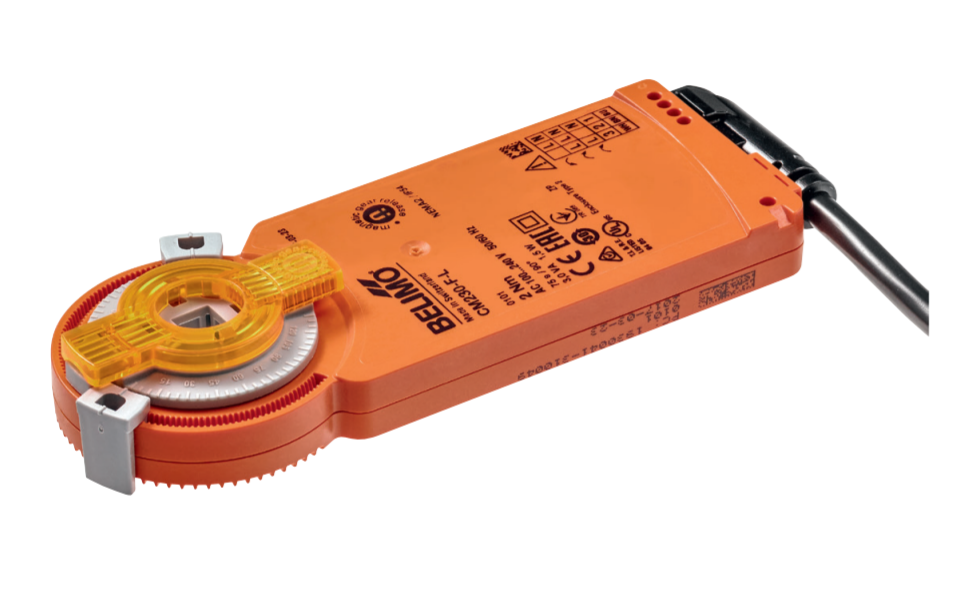

CM230-F-L - Belimo Damper actuator 2 Nm, 75 s, AC 230 V, Open/Close, form fit 8x8 mm

At IACS we provide Free Delivery and Next 1-2 day Delivery for all the Belimo Actuators in stock.

The Belimo CM230-F-L is an Actuator used in HVAC systems and applications to manage dampers.

This type of Actuator applies a Rotary motion to regulate the damper.

The Torque force applied by the CM230-F-L is 2 Nm.

The power supply requested for this Rotary Actuator is 230Vac.

IACS has the best prices on the right Belimo Actuators for your system.

Consult the Belimo custom datasheet above or contact iacs via email for personalised assistance if you have queries about size or installation.

CM230-F-L Damper actuator 2 Nm, 75 s, AC 230 V, Open/Close, form fit 8x8 mm

• Rotary actuator 2 Nm
• AC 85...265 V, Open/close, 3-point
• Running time motor 75 s / 90°
• IP54, Manual override with magnet
• Connection Cable 1 m PVC
• Direction of motion motor counter-clockwise rotation
• Mechanical interface Form fit 8x8 mm

Features

• Simple direct mounting The actuator with its hollow spindle is mounted in a form-fit manner directly on the damper spindle and can be optionally secured with the Z-ARCM anti-rotation clip to prevent it from rotating.

• Manual override with magnet possible (the gear is disengaged as long as the magnet adheres to the magnet symbol). The magnet for gear disengagement is integrated in the position indicator.

• Adjustable angle of rotation with mechanical end stops.


• High functional reliability The actuator is overload-proof, requires no limit switches and automatically stops when the end stop is reached.

Electrical Data

•    Nominal voltage range AC 85 ... 265 V, 50/60 Hz
•    Power consumption In operation 1.5 W At rest 1 W For wire sizing 3 VA
•    Connection Cable 1 m, 3 x 0.75 mm²

Functional Data
•    Torque (nominal torque) Min. 2 Nm @ nominal voltage
•    Direction of motion motoro ccw rotation
•    Manual override with magnet
•    Angle of rotation 0 ... 287.5°
•    Running time 75 s / 90°
•    Sound power level Max. 35 dB (A)
•    Position indicator Mechanical, pluggable (with integrated magnet for gear disengagement)

Safety
•    Protection class IEC/EN II reinforced insulation
•    Degree of protection IEC/EN IP54
•    EMC CE according to 2014/30/EU
•    Certification  UL cULus according to UL 60730-1A, UL 60730-2- 14 and CAN/CSA E60730-1:02
•    Mode of operation Type 1
•    Rated impulse voltage supply / control 2.5 kV
•    Control pollution degree 3
•    Ambient temperature –30 ... +50°C
•    Non-operating temperature –40 ... +80°C
•    Ambient humidity 95% r.H., non-condensing
•    Maintenance – free
