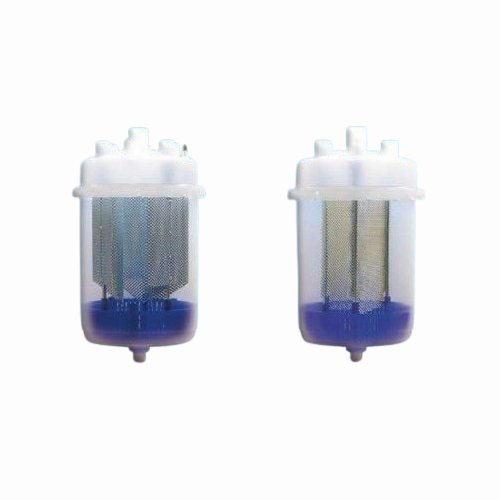

BL0T2C00H2SP - Carel 5-8 kg/h cylinder for humiSteam Immersed electrode humidifier, type C

At iacs, you can find the whole range of Carel cylinder components for your Humidification system.

The Carel BL0T2C00H2 is a cylinder used for the Carel Humidifier Systems, Humisteam x-plus.

The BL0T2C00H2has a capacity of 5-8 kg/h and 200-204 Diameter

This Single Use Disposable 3-phase steam cylinder is suitable for the Carel KUE02 Humidification kits, and 3 phase Humisteam UE005Y/X* and UE008Y/X* Humidifiers.

The Body is made of PPh Plastic, Class HB according to UL 94.

The Steam outlet is 30 mm

The manifold connection is 22 mm

The water volume is max 5.5 litres

The cylinder uses Galvanised steel electrodes.

The Electronic Connection is threaded M6. 10 mm nuts and isolating caps are supplied.

This part includes AFS sensor contacts.

The Max steam production is 8 kg/h

The maximum steam pressure is 0,0002 Mpa

If you need technical assistance, consult the Carel manualsheet or get in touch with our iacs technical support staff.

All the humiSteam cylinders feature large galvanised electrodes, positioned inside the cylinder so as to optimise duration and constant performance over the working life of the cylinder.In addition, significant attention has been paid to operation on water with more critical characteristics, to reduce the phenomenon of arcing.All cylinders are also fitted with filters to avoid the formation of lime scale in the base, preventing the blockage of the drain.
