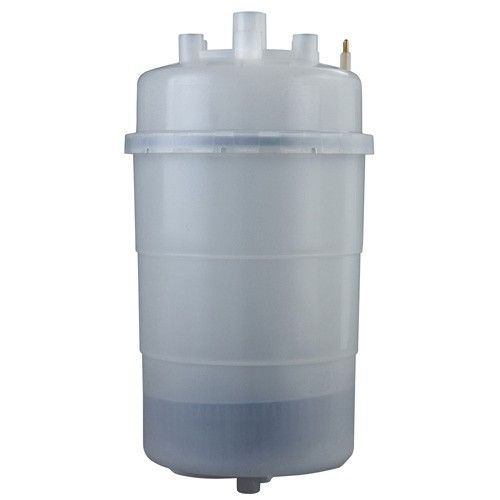

BL0T1C00H1SP - Carel 1 to 3 kg/h cylinder for 3-phase immersed electrode humidifier, disposable screw-down, three-phase, type C (400 Vac standard)

Explore at IACS our full range of Carel Cylinders for your Humidification system

The Carel BL0T1C00H1 is a Cylinder used for the Carel Humidifier Systems, Humisteam.

The capacity of this Carel Cylinder is 1-3 kg/h and diameter of 145 to 148.

The water conductivity type is C

This Carel part is suitable for for 3-phase immersed electrode humidifiers.

For technical advice, refer to the Carel manualsheet and contact our IACS technical support team.

Replacement BL0T1C00H1 Low Conductivity Cylinder. 460 volt 3 phase (and special application 3 ph, 575 VAC) for your Carel humidifier.

Specifications

• Approximate Diameter: 6(inches)
• Overall Height: 12 (inches)
• Weight: 1 (lb) 7 (oz)
• Number of Electrical Connections: 5
• Capacity: 0.6 – 3.2 kg of Steam per Hour
• Maximal Internal Pressure: 0.002 MPa
• Steam Hose Size: 22 (mm)
• Internal Strainer Type: Slotted
• Replacement Schedule: At Least Once per Year
• Included: O Ring
