AX-TE-RN1K - Axio Wall Mounted Temperature sensor - Ni1000a/TCR Siemens

AX-TE-RNIK - Wall Mounted Temperature Sensor - Ni1000a/TCR Siemens Features:

• Large Range of Sensor Options
• Direct Fixing, No Extra Brackets Required
• Accurate Sensing of Room Temperature
• Manufactured From Flame Retardant ABS

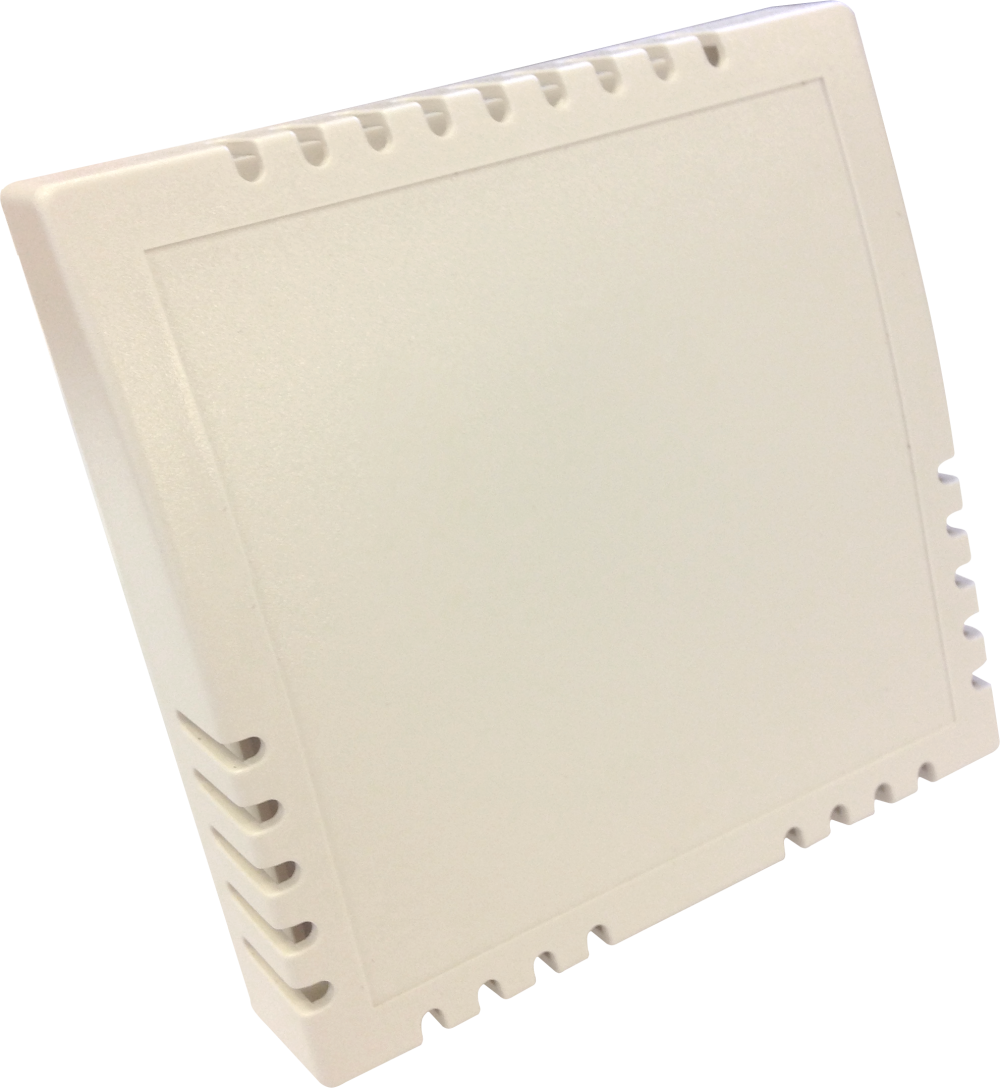

AX-TE-RNIK - Wall Mounted Temperature Sensor - Ni1000a/TCR Siemens

The AX-TE-R range of space temperature sensors are designed to interface with a wide variety of HVAC control equipment. Units are available with a high quality thermistor element or with an active linear output. The housing is designed for both direct surface mounting and with fixing holes for standard recessed patress and conduit boxes. The housing is designed to maximise air flow through it thus providing fast response times and returning values indicitive of the space in which it is installed.

• Output-Passive: Range of two wire thermistor and PTC platinum elements providing variable resistance
• Output Active - Current: 4-20mA representing -10°C to 40°C (unless specified otherwise)
• Accuracy: Given Below
• Thermistor: +/- 0.2°C between 0°C and 70°C
• Platinum: +/- 0.35°C between 0°C and 100°C (PT100a and PT1000a)
• Active: +/- 0.1% of range
• Material: VO Rated Flame Retardant ABS
• Terminals: Rising Clamp for 0.5-2.5mm² Cable
• Ambient Temp: -10°C to 60°C
• Dimensions: 85 x 85 x 26mm (max.) (transmitter 70 x 119 x 32mm)
• Country of Origin: United Kingdom
