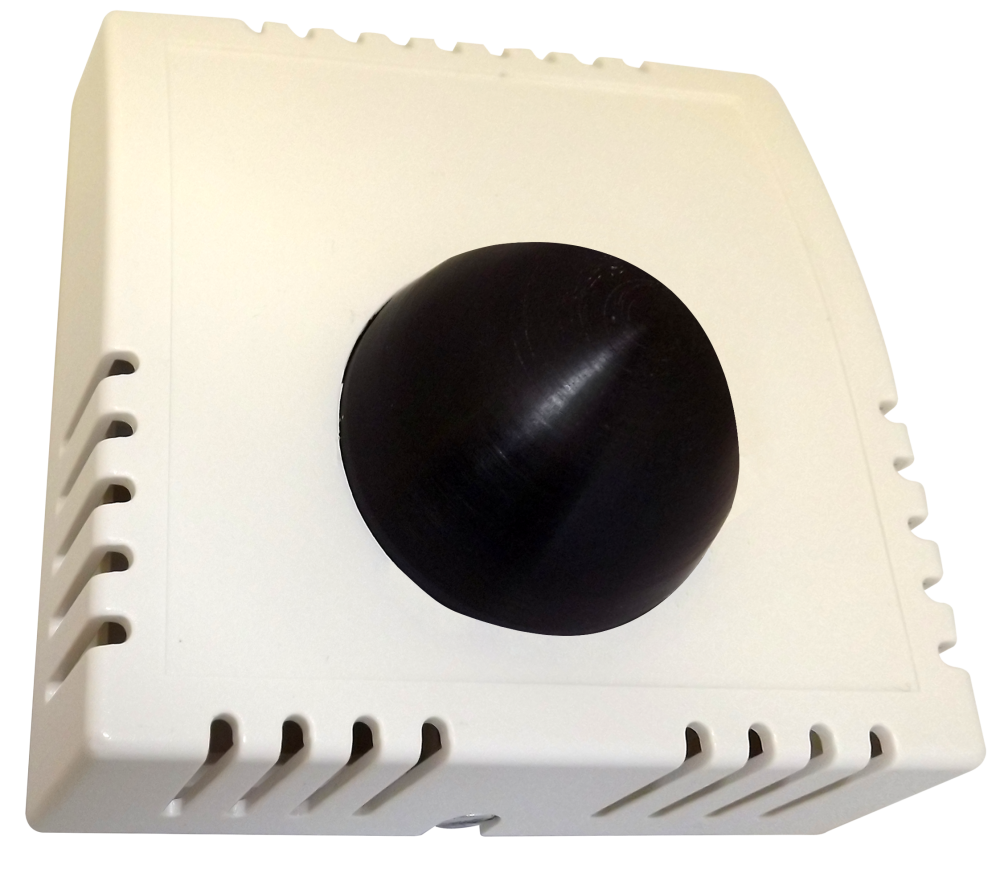

AX-TE-RBN-N1K - Axio Wall Mounted Temperature sensor - Ni1000a/TCR Siemens

AX-TE-RBN-N1K - Wall Mounted Temperature Sensor - Ni1000a/TCR Siemens Features:

• Large Range of Sensor Options
• Accurate Sensing of Comfort Temperature
• Direct Fixing, No Extra Brackets Required
• Manufactured From Flame Retardant ABS

AX-TE-RBN-N1K - Wall Mounted Temperature Sensor - Ni1000a/TCR Siemens

The AX-TE-RBN range of Black bulb temperature sensorsare used for radiant heat in indoor applications .They are designed to interface with a wide variety of HVAC control equipment. Units are available with a high quality thermistorelement or with an active linear output.Black bulb sensors are used to calculate comfort temperature which is specified as the average of the conductive and radiant temperatures.

• Output: Passive: Range of two wire thermistor and PTC platinum elements providing variable resistance.
• Output: Active - Current: 4-20mA representing -10°C to 40°C (unless specified otherwise)
• Accuracy: Given Below
• Thermistor: +/- 0.2°C between 0°C and 70°C
• Platinum: +/- 0.35°C between 0°C and 100°C (PT100a and PT1000a)
• Active: +/- 0.1% of range
• Materials: Flame Retardant ABS
• Terminals: Rising Clamp for 0.5-2.5mm^{2 Cable}
• Ambient Temp:-10°C to 60°C
• Dimensions: 85 x 85 x 52mm
• Country of Origin: U.K.
