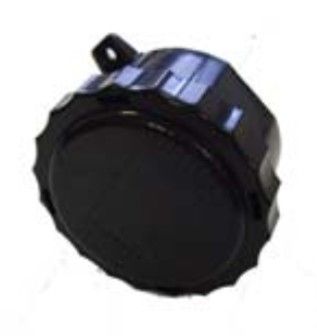

AX-TE-O2.2K - Axio Wall Mounted Temperature sensor - 2.2k Johnsons

The Axio AX-TE-O2.2K sensor is used to detect the air temperature outdoor.

AX-TE-O2.2K - Wall Mounted Temperature Sensor - 2.2k Johnsons Features:

• IP65 Housing (square and round options)
• Large Range of Sensor Options
• Accurate Sensing of External Temperature
• Direct Fixing, No Extra Brackets Required
• Manufactured From Flame Retardant ABS

AX-TE-O2.2K - Wall Mounted Temperature Sensor - 2.2k Johnsons

The AX-TE-Ox range of outside air temperature sensors are designed to interface with a wide variety of HVAC control equipment. Units are available with a high quality thermistor element or with an active linear output. When properly installed, the sensor housing offers IP65 protection against water and particulate ingress. The element is mounted within a thermally conductive bead through the side of the housing in a weatherproof shield to ensure accurate measurement of external conditions.

• Output-Passive: Range of two wire thermistor and PTC platinum elements providing variable resistance
• Output Active - Current: 4-20mA representing -10°C to 40°C (unless specified otherwise)
• Accuracy: Given Below
• Thermistor: +/- 0.2°C between 0°C and 70°C
• Platinum: +/- 0.35°C between 0°C and 100°C (PT100a and PT1000a)
• Active: +/- 0.1% of range
• Material: VO Rated Flame Retardant ABS
• Terminals: Rising Clamp for 0.5-2.5mm² Cable
• Ambient Temp: -40°C to 60°C
• Dimensions:80 x 80 x 52mm
• Country of Origin: Canada
