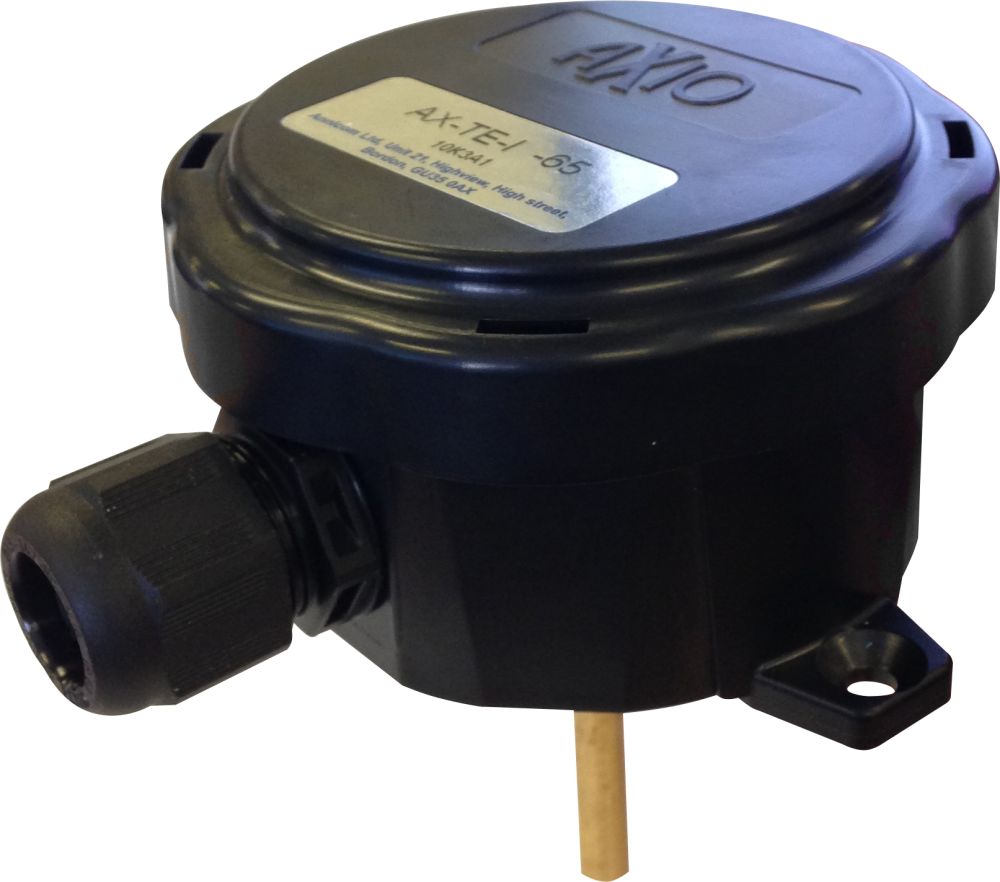

AX-TE-IT-65 - Axio Immersion Temperature Sensor - 65mm - Axio 10K3A1 Trend, Trane, Priva

AX-TE-IT-65 - Immersion Temperature Sensor - 65mm - 10K3A1 Trend, Trane, Priva Features:

• IP65 Housing
• Large Range of Sensor Options
• Non contact sensing
• Small 65 mm probe and pocket
• Direct Fixing, No Extra Brackets Required
• Manufactured From Flame Retardant ABS

AX-TE-IT-65 - Immersion Temperature Sensor - 65mm - 10K3A1 Trend, Trane, Priva

The AX-TE-Ix-65 range of small probed immersion temperature sensors are designed to be fitted into small bore pipework and to interface with a wide variety of HVAC control equipment. Units are available with a high quality thermistor element or with an active 4-20mA linear output. The sensors are designed to be fitted into a 65mm brass pocket to provide accurate reading of fluid temperature without the need for the probe itself to be immersed.

• Output-Passive: Range of two wire thermistor and PTC platinum elements providing variable resistance
• Output Active - Current: 4-20mA representing -10°C to 90°C (unless specified otherwise)
• Accuracy: Given Below
• Thermistor: +/- 0.2°C between 0°C and 70°C
• Platinum: +/- 0.35°C between 0°C and 100°C (PT100a and PT1000a)
• Active: +/- 0.1% of range
• Material: VO Rated Flame Retardant ABS
• Terminals: Rising Clamp for 0.5-2.5mm² Cable
• Ambient Temp: 0°C to 70°C 0-95% RH
• Dimensions: Housing: 90 x 90 x 52mm
• Probe: 65 x 7 mm diameter
• Overall : 115mm length
• Pocket: 65 x 7.2mm 1/2" BSP Thread
• Country of Origin: United Kingdom
