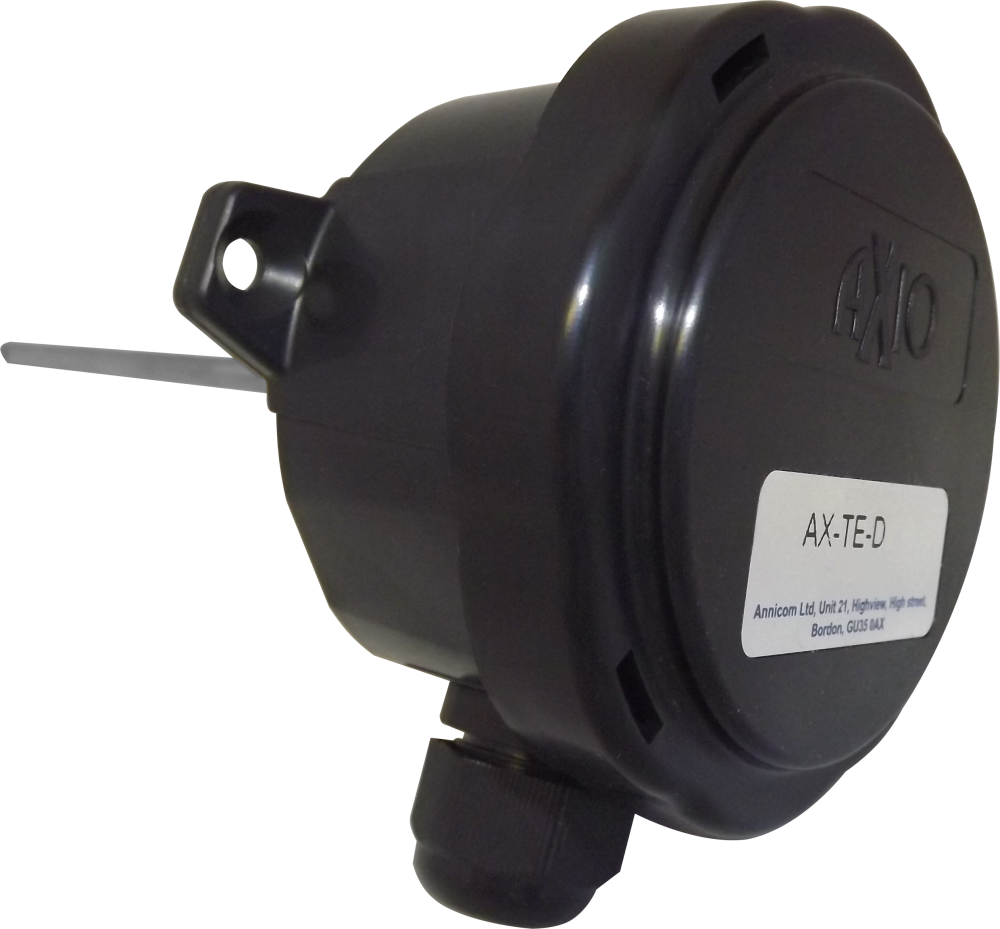

AX-TE-DT - Axio Duct Mounted Temperature sensor - 10K3A1 Trend, Trane, Priva

AX-TE-DT - Duct Mounted Temperature Sensor - 10K3A1 Trend, Trane, Priva Features:

• IP65 Housing
• Large Range of Sensor Options
• Enclosure available in white
• Can be branded
• 150mm x 6mm standard
• Direct fixing, no extra brackets required
• Flame retardant ABS plastic
• Stainless steel tip
• Ventilated probe for fast response time

AX-TE-DT - Duct Mounted Temperature Sensor - 10K3A1 Trend, Trane, Priva

The AX-TE-D-xx range of duct temperature sensors are designed to interface with a wide variety of HVAC control equipment. Units are available with a high quality thermistor element or with an active linear output. When properly installed, the sensor housing offers IP65 protection against water and particulate ingress. The innovative cross-axis flow tip ensures that the sensing element provides good response times and accurate readings.

• Output: Given Below
• Passive: Range of two wire thermistor and PTC platinum elements providing variable resistance.
• Active - Current: 4-20mA representing -10°C to 40°C (unless specified otherwise
• Voltage 0-10V representing -10°C to 40°C (unless specified otherwise)
• Accuracy: Given Below
• Thermistor: +/- 0.2°C between 0°C and 70°C
• Platinum/Nickel: +/- 0.35°C between 0°C and 100°C (PT100a , PT1000a and Nickel)
• Active: +/- 0.1% of range
• Materials-Housing: VO Rated Flame Retardant ABS
• Terminals: Rising Clamp for 0.5-2.5mm² Cable
• Ambient Temp: -10°C to 70°C
• Dimensions Housing: 80 x 80 x 52mm
• Probe: 200 x 6.4mm diameter
• Country of Origin: Canada
