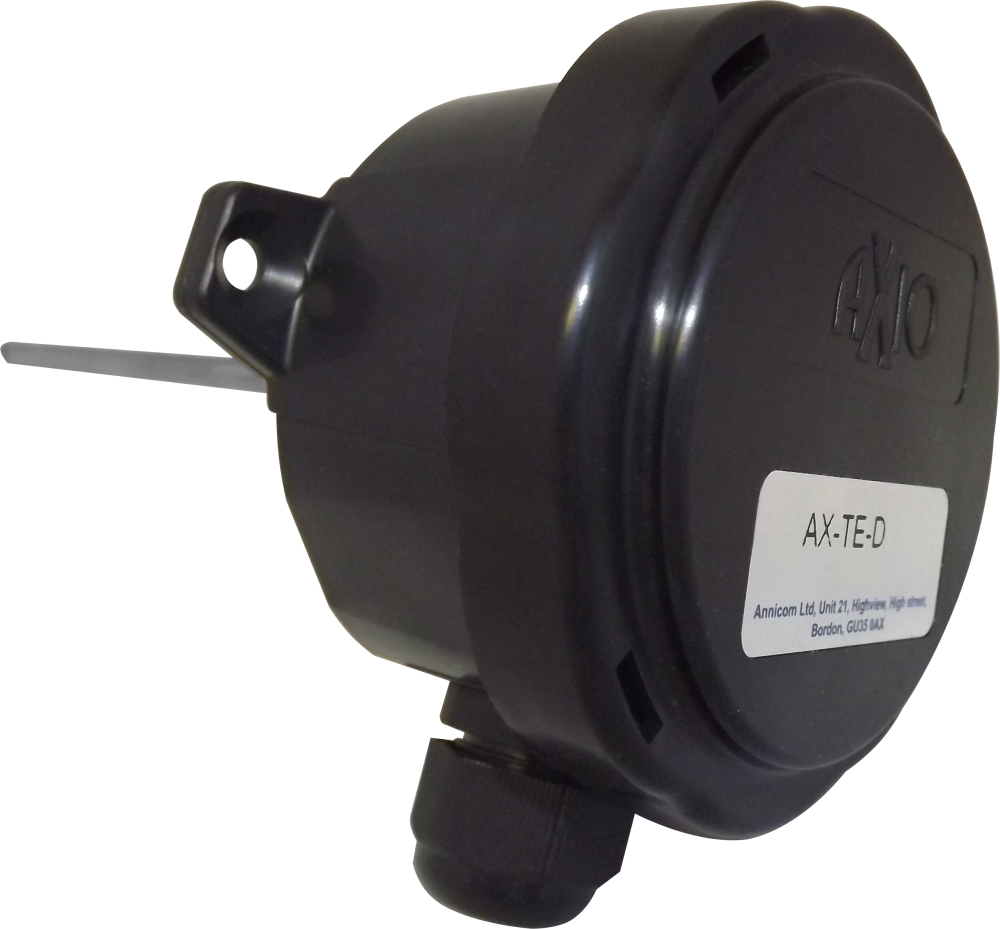

AX-TE-D2.2K - Axio Duct Mounted Temperature sensor - 2.2K Johnsons

AX-TE-D2.2K - Duct Mounted Temperature Sensor - 2.2K Johnsons Features:

• IP65 Housing
• Large Range of Sensor Options
• Cross-axis Flow Tip for Maximum Accuracy
• Direct Fixing, No Extra Brackets Required
• 300mm and 450mm probe lengths available
• Manufactured From Flame Retardant ABS

AX-TE-D2.2K - Duct Mounted Temperature Sensor - 2.2K Johnsons

The AX-TE-D-xx range of duct temperature sensors are designed to interface with a wide variety of HVAC control equipment. Units are available with a high quality thermistor element or with an active linear output. When properly installed, the sensor housing offers IP65 protection against water and particulate ingress. The innovative cross-axis flow tip ensures that the sensing element provides good response times and accurate readings.

• Output: Given Below
• Passive: Range of two wire thermistor and PTC platinum elements providing variable resistance.
• Active - Current: 4-20mA representing -10°C to 40°C (unless specified otherwise
• Voltage 0-10V representing -10°C to 40°C (unless specified otherwise)
• Accuracy: Given Below
• Thermistor: +/- 0.2°C between 0°C and 70°C
• Platinum/Nickel: +/- 0.35°C between 0°C and 100°C (PT100a , PT1000a and Nickel)
• Active: +/- 0.1% of range
• Materials-Housing: VO Rated Flame Retardant ABS
• Terminals: Rising Clamp for 0.5-2.5mm² Cable
• Ambient Temp: -10°C to 70°C
• Dimensions Housing: 80 x 80 x 52mm
• Probe: 200 x 6.4mm diameter
• Country of Origin: Canada
