AX-MPR3-12 - Axio Three Phase 12kW Thyristor - Power Controller

£137.99 £114.99 Price match guarantee
On request
SKU
AX-MPR3-12
Next Supplier Stock Update: 15/03/2025
Manuals & Datasheets
 DATA-SHEET
DATASHEET


Product typeThyristor SSR's
Input Signal0..10 Vdc
ManufacturerAxio
KW Rating12 kW
Power Supply400Vac, 3Ph, 50Hz

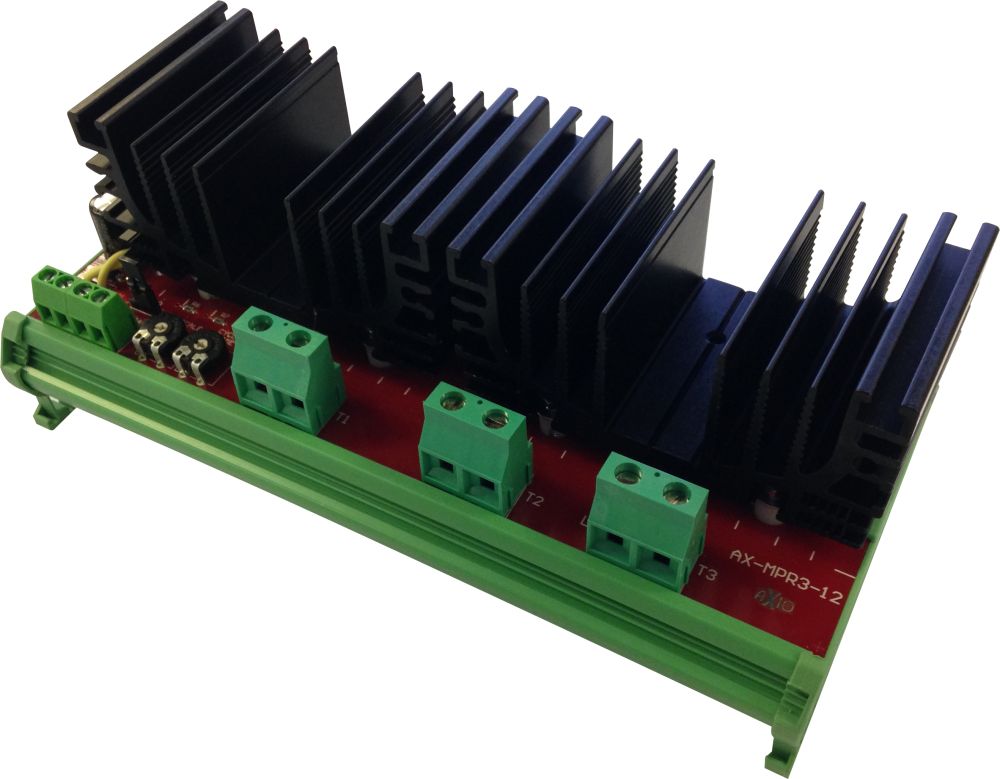

The Axio AX-MPR3-12 is a Three Phase 12kW Thyristor, Power Controller.

  • 0-10Vdc Control Input
  • 12kW and 18kW Models
  • PWM Control
  • Auto Reset Over Temperature Protection
  • 24Vac/dc Powered
  • Alarm Output
  • LED Indication
  • DIN Rail (TS35) Mounting

AX-MPR3-12 - Three Phase 12kW Thyristor:

The AX-MPR3 DIN Rail Series of Power Regulators are designed to provide continuously adjustable control of electric heating loads from a BMS Controller or similar. Applications include electric heating coils, heating cables and electric furnaces. The AX-MPR3 Series use solid-state switching with “zero crossing technology” for minimum RFI and provide accurate switching control. All Power Controllers in this series feature Over Temperature Protection with automatic reset and Alarm Output, LED Indication of Output ON and are designed to mount on TS35 section DIN Rail. No additional heatsinks are needed.

  • Input: 0-10Vdc
  • Power Supply: 24Vac/dc +/-10%
  • Alarm Output: 24Vac/dc as power supply - 0V when over temperature alarm is active
  • Max Heater Duty: See Overleaf
  • Rated Load: See Overleaf
  • Rated Supply: 380 - 440Vac / 50-60Hz
  • LED Indication: ON when output is on.
  • Dissipated Heat: See Overleaf
  • Terminals-Control: Rising Clamp for 0.5-2.5mm2 Cable
  • Power: Rising Clamp for 4mm2 Stranded or 6mm2 Solid Core Cable
  • Ambient Temp. Range: 0 to 55°C. Note: the units are rated at 40°C. If using at higher ambient temperature, de-rate the unit by 10% for every 5°C above 40°C .
  • Dimensions: See Overleaf
  • Weight: See Overleaf
  • Country of Origin: United Kingdom
