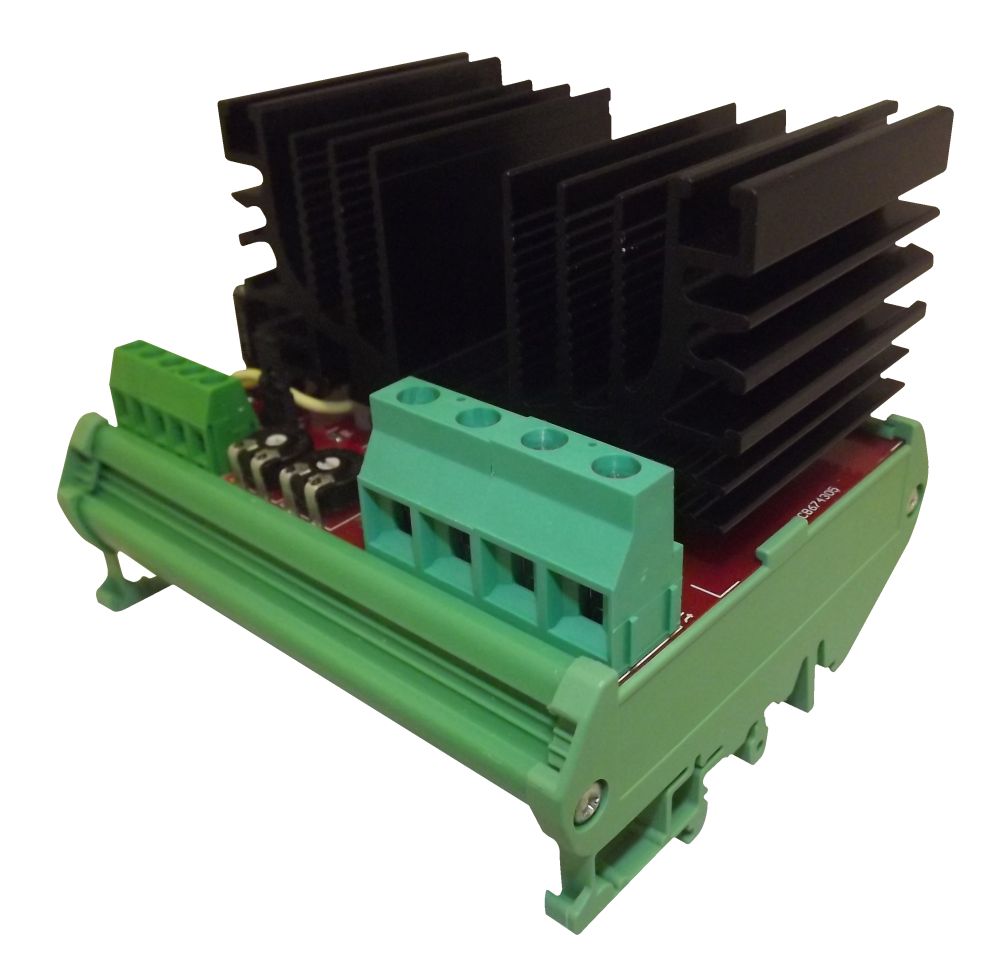

AX-MPR1-9-RL - Single Phase 9kW Raise/Lower Thyristor Features:
0-10Vdc Control Input
24Vac/dc Powered
Neutral Pass Through Terminals
LED Indication
DIN Rail (TS35) Mounting
4kW, 6kW and 9kW Models
PWM Control
Auto Reset Over Temperature Protection
AX-MPR1-9-RL - Single Phase 9kW Raise/Lower Thyristor :
The AX-MPR1 Series of DIN Rail mounting Power Controllers are designed to provide continuously adjustable control of electric heating loads from a BMS Controller or similar. Applications include electric heating coils, heating cables and electric furnaces. The AX-MPR1 Series use solid-state switching with “zero crossing technology” for minimum RFI and provides accurate switching control. All Power Controllers in this series feature Over Temperature Protection with automatic reset and Alarm Output, LED Indication of Output ON and are designed to mount on TS35 section DIN Rail. No additional heat sinks are needed
Input: 0-10Vdc
Power Supply: 24Vac/dc +/-10%
Alarm Output: 24Vac/dc as power supply - 0V when over temperature alarm is active (not 6kW)
Max Heater Duty: See Overleaf
Rated Load: See Overleaf
Rated Supply: 220-255Vac / 50-60Hz
LED Indication: ON when output is on.
Dissipated Heat: See Overleaf
Terminals: Control: Rising Clamp for 0.5-2.5mm2Cable Power: Rising Clamp for 4mm2 Stranded or 6mm2 Solid Core Cable
Ambient Temp. Range: AX-MPR-1-9: 0 to 55°C Note; The units are rated at 30°C. If using at higher ambient temperature de-rate the units by 10% for every 5°C above 30°C
Others: 0 to 55°C Note; The units are rated at 40°C. If using at higher ambient temperature de-rate the units by 10% for every 5°C above 40°C.
