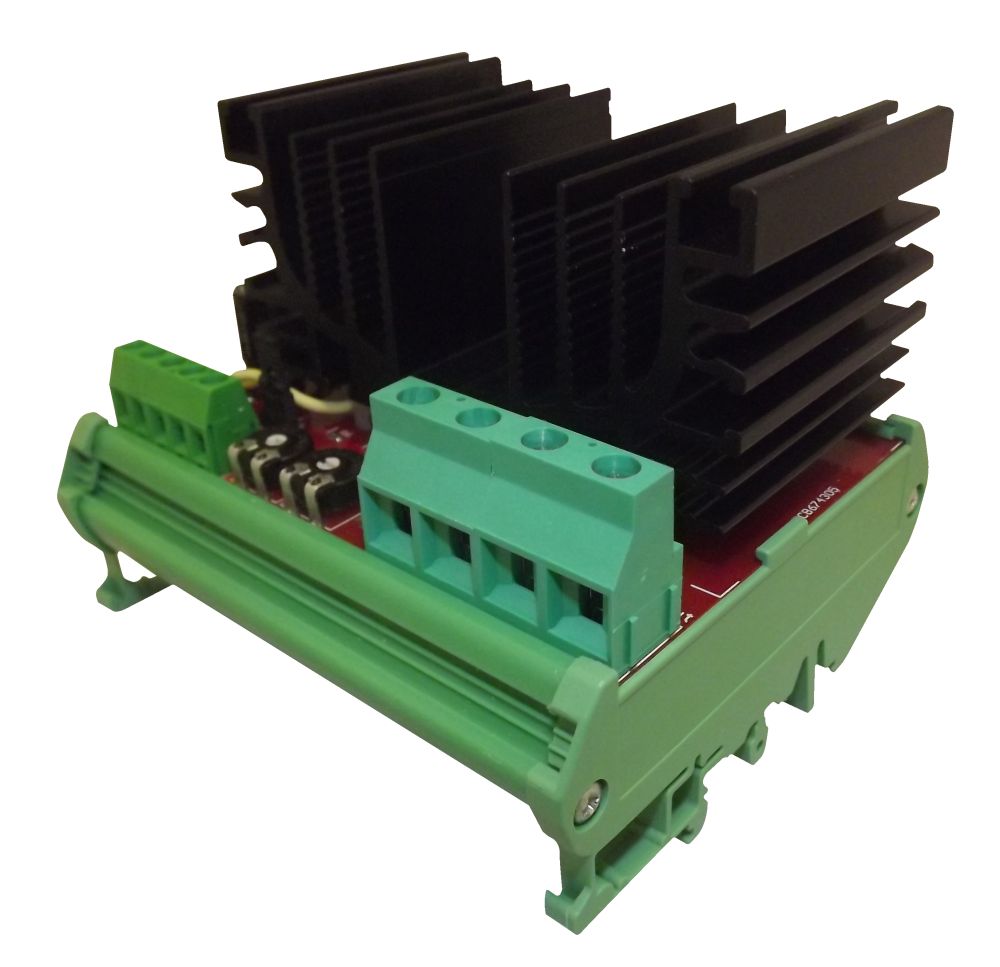

AX-MPR1-4-RL - Axio Single Phase 4kW Raise/Lower Thyristor

£107.99 £89.99 Price match guarantee
On request
SKU
AX-MPR1-4-RL
Next Supplier Stock Update: 15/03/2025
Manuals & Datasheets
 DATA-SHEET
DATASHEET

Input Signal0..10 Vdc
ManufacturerAxio
KW Rating4 kW
Power Supply230Vac, 1Ph, 50Hz

AX-MPR1-4-RL - Single Phase 4kW Raise/Lower Thyristor Features:

  • 0-10Vdc Control Input
  • 24Vac/dc Powered
  • Neutral Pass Through Terminals
  • LED Indication
  • DIN Rail (TS35) Mounting
  • 4kW, 6kW and 9kW Models
  • PWM Control
  • Auto Reset Over Temperature Protection

AX-MPR1-4-RL - Single Phase 4kW Raise/Lower Thyristor:

The AX-MPR1 Series of DIN Rail mounting Power Controllers are designed to provide continuously adjustable control of electric heating loads from a BMS Controller or similar. Applications include electric heating coils, heating cables and electric furnaces. The AX-MPR1 Series use solid-state switching with “zero crossing technology” for minimum RFI and provides accurate switching control. All Power Controllers in this series feature Over Temperature Protection with automatic reset and Alarm Output, LED Indication of Output ON and are designed to mount on TS35 section DIN Rail. No additional heat sinks are needed

  • Input: 0-10Vdc
  • Power Supply: 24Vac/dc +/-10%
  • Alarm Output: 24Vac/dc as power supply - 0V when over temperature alarm is active (not 6kW)
  • Max Heater Duty: See Overleaf
  • Rated Load: See Overleaf
  • Rated Supply: 220-255Vac / 50-60Hz
  • LED Indication: ON when output is on.
  • Dissipated Heat: See Overleaf
  • Terminals: Control: Rising Clamp for 0.5-2.5mm2Cable Power: Rising Clamp for 4mm2 Stranded or 6mm2 Solid Core Cable
  • Ambient Temp. Range: AX-MPR-1-9: 0 to 55°C Note; The units are rated at 30°C. If using at higher ambient temperature de-rate the units by 10% for every 5°C above 30°C
  • Others: 0 to 55°C Note; The units are rated at 40°C. If using at higher ambient temperature de-rate the units by 10% for every 5°C above 40°C.
  • Dimensions: See Overleaf
  • Weight: See Overleaf
  • Country of Origin: United Kingdom
