22DTC-13 - Belimo Duct CO₂, Temperature Sensor L=180 mm, 4...20 mA
£318.36
£265.30
On request
SKU
22DTC-13
Next Supplier Stock Update: 11/03/2025
EXPLORE MORE VERSIONS AND ACCESSORIES
Manuals & Datasheets
|
MANUAL |
MOUNTING INSTRUCTIONS |
BROCHURE |
 |
|
|
| IP rating | IP65 |
| Output Signal | 4..20 mA |
| Manufacturer | Belimo |
| Power Supply | 24Vac/Vdc |
| Sensor Type | Air Quality |
| Sensor characteristics | Duct Mounted |
| Probe Length | 50 mm |
22DTC-13

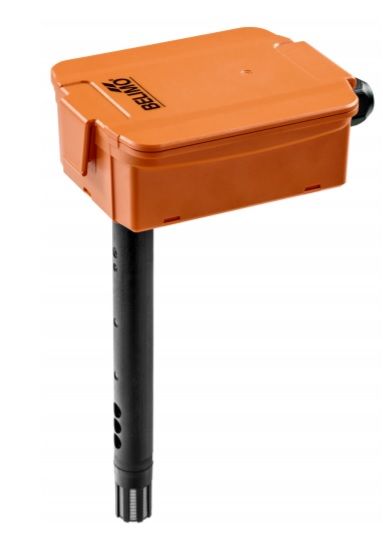

Duct sensor CO2 / temperature
AC/DC 24 V, 2 outputs DC 4...20 mA
Probe length 180 mm, probe diameter 19.5 mm
NEMA 4X / IP65
Incl. mounting flange
Removable spring loaded terminal block max. 2.5 mm²
Available as of: 01.09.2017
| Electrical data | Power Supply DC | 15...24 V, ±10%, 1.5 W |
| Electrical connection | Removable spring loaded terminal block max. 2.5 mm² | |
| Cable entry | cable gland PG11 Ø6...10 mm, with strain relief Ø6...8 mm | |
| Functional data | Sensor Technology | NDIR (non dispersive infrared) with stainless steel wire mesh filter |
| Output signal active note | Current outout: max. 500 Ω load | |
| Media | Air | |
| Measuring data | Measured values | CO₂ |
| Temperature | ||
| Measuring range CO₂ | 0...2000 ppm | |
| Accuracy CO₂ | ±75 ppm; >750 ppm: ±10% of measuring value | |
| Accuracy humidity | ±2% between 10...90% rH @ 21 °C | |
| Operating condition air flow | min. 0.3 m/s | |
| max. 10 m/s | ||
| Materials | Cable gland | PA6, black |
| Housing | Cover: Lexan, Belimo orange NCS S0580- Y6OR | |
| Bottom: Lexan, Belimo orange NCS S0580- Y6OR | ||
| Seal: 0467 NBR70, black | ||
| Probe material | PA6, black |
| Optional accessories | Description | Type |
| Mounting flange for duct humidity and CO₂ sensor | A-22D-A35 | |
| Scope of delivery | Mounting flange |
