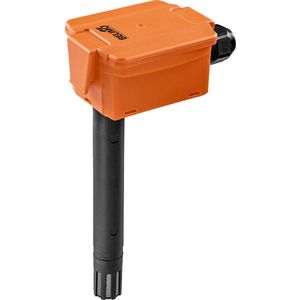

22DTC-11 - Belimo Duct CO₂, Temperature Sensor L=180 mm, DC 0...5 V, DC 0...10 V
£311.64
£259.70
On request
SKU
22DTC-11
Next Supplier Stock Update: 11/03/2025
Manuals & Datasheets
|
MANUAL |
MOUNTING INSTRUCTIONS |
BROCHURE |
 |
|
|
| IP rating | IP65 |
| Output Signal | 0..10Vdc |
| Manufacturer | Belimo |
| Power Supply | 24Vac/Vdc |
| Sensor Type | Air Quality |
| Sensor characteristics | Duct Mounted |
| Probe Length | 50 mm |
22DTC-11
Duct sensor CO2 / temperature
AC/DC 24 V, 2 outputs DC 0...5 /10 V adjustable
Probe length 180 mm, probe diameter 19.5 mm
NEMA 4X / IP65
Incl. mounting flange
Removable spring loaded terminal block max. 2.5 mm²
| Electrical data | Power Supply DC | 15...24 V, ±10%, 1.5 W |
| Power Supply AC | 24 V, ±10%, 2.9 VA | |
| Electrical connection | Removable spring loaded terminal block max. 2.5 mm² | |
| Cable entry | cable gland PG11 Ø6...10 mm, with strain relief Ø6...8 mm | |
| Functional data | Sensor Technology | NDIR (non dispersive infrared) with stainless steel wire mesh filter |
| Output signal active note | Output DC 0...5/10 V with Jumper adjustable Voltage output: min. 10 kΩ load | |
| Media | Air | |
| Measuring data | Measured values | CO₂ |
| VOC | ||
| Mix CO₂/VOC | ||
| Temperature | ||
| Measuring range CO₂ | 0...2000 ppm | |
| Measuring range humidity | 0...100% rH | |
| Accuracy CO₂ | ±75 ppm; >750 ppm: ±10% of measuring value | |
| Accuracy humidity | ±2% between 10...90% rH @ 21 °C | |
| Accuracy temperature | ±1% of measuring range @ 21 °C NTC10k (10k2): ±0.22 °C @ 25 °C | |
| Operating condition air flow | min. 0.3 m/s | |
| max. 10 m/s | ||
| Materials | Cable gland | PA6, black |
| Housing | Cover: Lexan, Belimo orange NCS S0580- Y6OR | |
| Bottom: Lexan, Belimo orange NCS S0580- Y6OR | ||
| Seal: 0467 NBR70, black | ||
| Probe material | PA6, black |
| Scope of delivery | Mounting flange |
