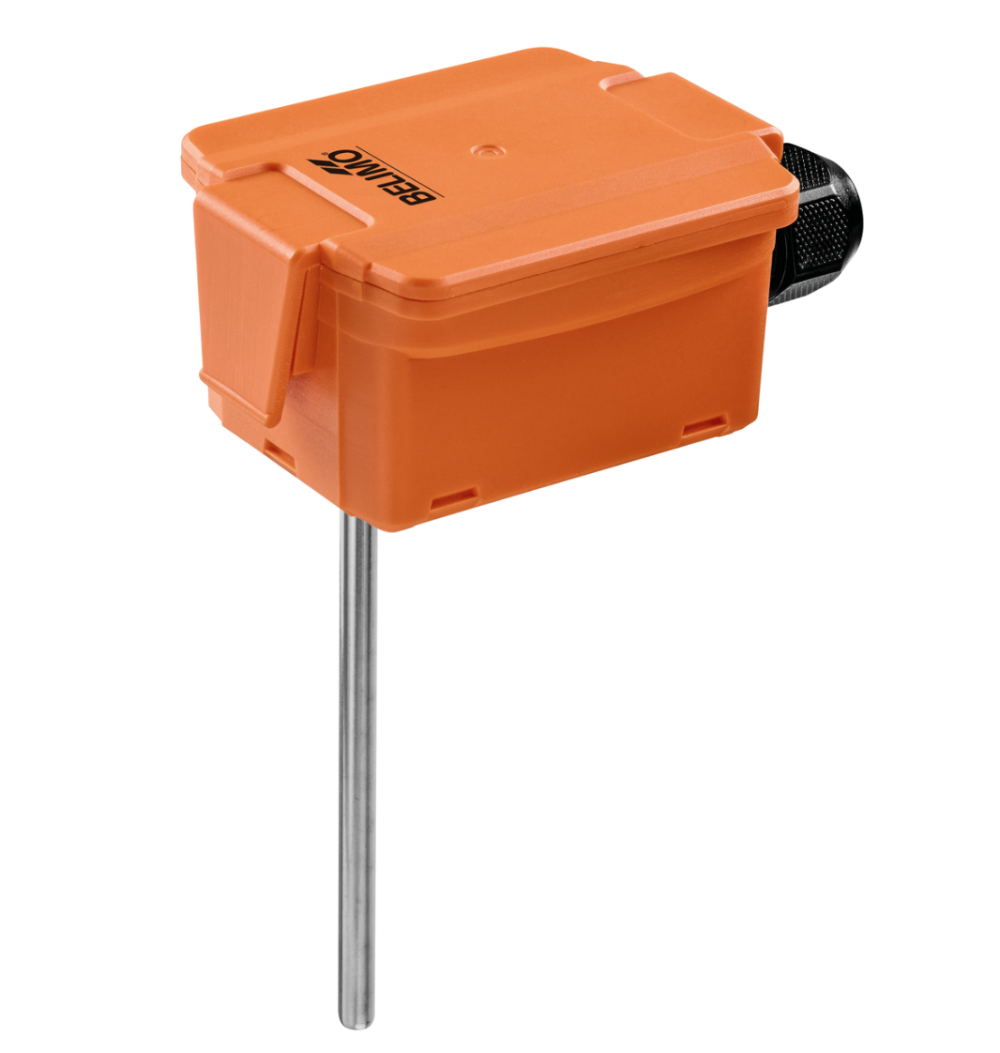

22DT-14H - Belimo Duct or Immersion Temperature Sensor L=50 mm, D=6 mm, 4...20 mA
£74.09
£61.74
On request
SKU
22DT-14H
Next Supplier Stock Update: 11/03/2025
EXPLORE MORE VERSIONS AND ACCESSORIES
Manuals & Datasheets
|
MANUAL |
MOUNTING INSTRUCTIONS |
BROCHURE |
 |
|
|
| IP rating | IP65 |
| Output Signal | 4..20 mA |
| Manufacturer | Belimo |
| Power Supply | 24Vac/Vdc |
| Sensor Type | Temperature |
| Sensor characteristics | Duct Mounted, Immersion |
| Probe Length | 50 mm |
Explore all the components for your ventilation system at IACS. All Belimo Temperature Sensors in stock are ready for free delivery or 1-2 working days delivery.
The Belimo 22DT-14H is a Sensor used in HVAC applications and it is a device that provides an precise measurement of temperature.
The Sensor 22DT-14H is a solution used for immersion measurement and duct measurement.
The ideal Belimo Sensors for your system are most affordable at IACS.
If you have questions concerning size or installation, refer to the Belimo custom datasheet above or email IACS for individual ised support.
| Electrical data | Power Supply DC | 15...24 V, ±10%, 0.5 W | ||||||||||||||||||||||||||||||||||||
| Electrical connection | Removable spring loaded terminal block max. 2.5 mm² | |||||||||||||||||||||||||||||||||||||
| Cable entry | cable gland PG11 Ø6...10 mm, with strain relief Ø6...8 mm | |||||||||||||||||||||||||||||||||||||
| Functional data | Multirange | YES | ||||||||||||||||||||||||||||||||||||
| Output signal active note | Current outout: max. 500 Ω load | |||||||||||||||||||||||||||||||||||||
| Media | Air | |||||||||||||||||||||||||||||||||||||
| Water | ||||||||||||||||||||||||||||||||||||||
| Measuring data | Measured values | Temperature | ||||||||||||||||||||||||||||||||||||
| Measuring range temperature | range selectable | |||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||
| Accuracy temperature | ±1% of measuring range @ 21 °C | |||||||||||||||||||||||||||||||||||||
| Materials | Cable gland | PA6, black | ||||||||||||||||||||||||||||||||||||
| Housing | Cover: Lexan, Belimo orange NCS S0580- Y6OR | |||||||||||||||||||||||||||||||||||||
| Bottom: Lexan, Belimo orange NCS S0580- Y6OR | ||||||||||||||||||||||||||||||||||||||
| Seal: 0467 NBR70, black |
| Optional accessories | Description | Type |
| Mounting flange 6 mm, Plastic (adjustable), up to max. 120 °C | A-22D-A03 | |
| Mounting flange 6 mm, Brass, up to max. 260 °C | A-22D-A05 | |
| Mandatory accessories | Description | Type |
| Thermowell pocket Stainless steel, 50 mm, G1/2", SW27 | A-22P-A06 | |
| Thermowell pocket Stainless steel, 100 mm, G1/2", SW27 | A-22P-A08 | |
| Thermowell pocket Stainless steel, 150 mm, G1/2", SW27 | A-22P-A10 | |
| Thermowell pocket Stainless steel, 200 mm, G1/2", SW27 | A-22P-A12 | |
| Thermowell pocket Stainless steel, 300 mm, G1/2", SW27 | A-22P-A14 | |
| Thermowell pocket Stainless steel, 450 mm, G1/2", SW27 | A-22P-A16 | |
| Thermowell pocket Brass, 50 mm, G1/2", SW27 | A-22P-A18 | |
| Thermowell pocket Brass, 100 mm, G1/2", SW22 | A-22P-A20 | |
| Thermowell pocket Brass, 150 mm, G1/2", SW22 | A-22P-A22 | |
| Thermowell pocket Brass, 200 mm, G1/2", SW22 | A-22P-A24 | |
| Thermowell pocket Brass, 300 mm, G1/2", SW22 | A-22P-A26 | |
| Thermowell pocket Brass, 450 mm, G1/2", SW22 | A-22P-A28 | |
| For Immersion Application a Thermowell pocket A-22P-A.. is recommended. | ||
| Scope of delivery | Mounting Clip | |
| Screws | ||
| Adhesive foil |
