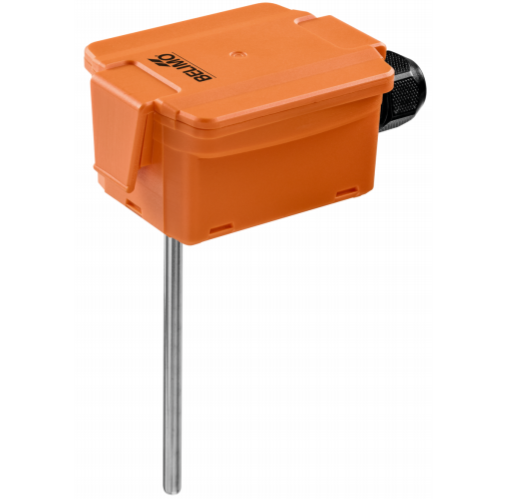

22DT-12N - Belimo Duct/Immersion Temperature Sensor L=150 mm, D=6 mm, DC 0...5 V, DC 0...10 V
£76.44
£63.70
On request
SKU
22DT-12N
Next Supplier Stock Update: 11/03/2025
EXPLORE MORE VERSIONS AND ACCESSORIES
Manuals & Datasheets
|
MANUAL |
MOUNTING INSTRUCTIONS |
BROCHURE |
 |
|
|
| IP rating | IP65 |
| Output Signal | 0..10Vdc |
| Manufacturer | Belimo |
| Power Supply | 24Vac/Vdc |
| Sensor Type | Temperature |
| Sensor characteristics | Duct Mounted, Immersion |
| Probe Length | 150 mm |
Visit IACS to find every part of your HVAC system. In stock Belimo Temperature Sensors may all be delivered with free delivery or 1-2 working days delivery.
The Belimo 22DT-12N is a Sensor that is utilised in HVAC systems and a tool that provides temperature readings.
This type of Belimo Sensor is used either for immersion measurement and duct measurement
Find the best-priced Belimo Sensor that is compatible with your system at IACS.
If you have questions about size or installation, consult the Belimo custom datasheet above or send an email to IACS to get personal ised guidance.
| Electrical data | Power Supply DC | 15...24 V, ±10%, 0.35 W | ||||||||||||||||||||||||||||||||||||
| Power Supply AC | 24 V, ±10%, 0.82 VA | |||||||||||||||||||||||||||||||||||||
| Electrical connection | Removable spring loaded terminal block max. 2.5 mm² | |||||||||||||||||||||||||||||||||||||
| Cable entry | cable gland PG11 Ø6...10 mm, with strain relief Ø6...8 mm | |||||||||||||||||||||||||||||||||||||
| Functional data | Multirange | YES | ||||||||||||||||||||||||||||||||||||
| Output signal active note | Output DC 0...5/10 V with Jumper adjustable Voltage output: min. 5 kΩ load | |||||||||||||||||||||||||||||||||||||
| Media | Air | |||||||||||||||||||||||||||||||||||||
| Water | ||||||||||||||||||||||||||||||||||||||
| Measuring data | Measured values | Temperature | ||||||||||||||||||||||||||||||||||||
| Measuring range temperature | range selectable | |||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||
| Accuracy temperature | ±1% of measuring range @ 21 °C | |||||||||||||||||||||||||||||||||||||
| Materials | Cable gland | PA6, black | ||||||||||||||||||||||||||||||||||||
| Housing | Cover: Lexan, Belimo orange NCS S0580- Y6OR | |||||||||||||||||||||||||||||||||||||
| Bottom: Lexan, Belimo orange NCS S0580- Y6OR | ||||||||||||||||||||||||||||||||||||||
| Seal: 0467 NBR70, black |
| Optional accessories | Description | Type |
| Mounting flange 6 mm, Plastic (adjustable), up to max. 120 °C | A-22D-A03 | |
| Mounting flange 6 mm, Brass, up to max. 260 °C | A-22D-A05 | |
| Mandatory accessories | Description | Type |
| Thermowell pocket Stainless steel, 50 mm, G1/2", SW27 | A-22P-A06 | |
| Thermowell pocket Stainless steel, 100 mm, G1/2", SW27 | A-22P-A08 | |
| Thermowell pocket Stainless steel, 150 mm, G1/2", SW27 | A-22P-A10 | |
| Thermowell pocket Stainless steel, 200 mm, G1/2", SW27 | A-22P-A12 | |
| Thermowell pocket Stainless steel, 300 mm, G1/2", SW27 | A-22P-A14 | |
| Thermowell pocket Stainless steel, 450 mm, G1/2", SW27 | A-22P-A16 | |
| Thermowell pocket Brass, 50 mm, G1/2", SW27 | A-22P-A18 | |
| Thermowell pocket Brass, 100 mm, G1/2", SW22 | A-22P-A20 | |
| Thermowell pocket Brass, 150 mm, G1/2", SW22 | A-22P-A22 | |
| Thermowell pocket Brass, 200 mm, G1/2", SW22 | A-22P-A24 | |
| Thermowell pocket Brass, 300 mm, G1/2", SW22 | A-22P-A26 | |
| Thermowell pocket Brass, 450 mm, G1/2", SW22 | A-22P-A28 | |
| For Immersion Application a Thermowell pocket A-22P-A.. is recommended. | ||
| Scope of delivery | Mounting Clip | |
| Screws | ||
| Adhesive foil |
